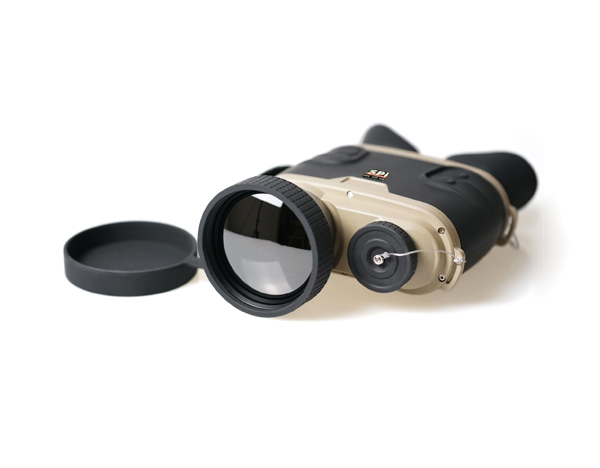

SPI Typhoon T640-100-B

THERMAL BINOCULARS | PART #T640-100-B

CHARACTERISTICS

Detector type: Uncooled Microbolometer
Resolution: 640 x 480
FOV: 6.2° x 4.7° (H x V)

PACKAGE INCLUDES

  • Packing Box
  • Wrist Strap
  • Neck Lanyard
  • Lens Tissue
  • One Lithium Battery CR123A
  • Operators Manual
  • Soft Carrying Case
thermal Binocular optics vision compact rugged

DESCRIPTION AND FEATURES

EXTRAORDINARY PERFORMANCE

SI100 thermal binoculars has cutting edge 640*480 resolution thermal imaging core , 800*600 resolution display and 100mm lens, your night vision clarity is born to be extraordinary. SPI Typhoon helps you detect human up to 3000m and vehicles 4000m away.

GRAB AND GO

SPI Typhoon thermal binoculars starts in seconds and is easy to use in any scenario. Whether it is for law enforcement, hunting and outdoor adventures, with 1.0kg super light-weighted body, IP66 rating and 6 hours’ battery life, we are here to keep your surroundings safe and clear.

TOTAL CUSTOMIZABLE

Choose from 50mm, 75mm and 100mm lens and high resolution OLED/LCD display to protect your investment. You may even have your dedicated customized product outlook for free.

Long range thermal scopes
Long range PTZ flir camera
Thermal night vision scopes
X26.com long range thermal flir night vision scopes, binoculars, monoculars, goggles, clip on and PTZ imaging systems
Long range PTZ flir camera
Thermal night vision scopes
Long range PTZ thermal flir cameras
Long range PTZ flir camera

SPECIFICATIONS

THERMAL IMAGING
Detector Type Uncooled Microbolometer
Detector Resolution 640 * 480px
NETD ＜80mK
Spectral Range 8-14um
Pixel Pitch 17um
Frame Rate 50Hz
LEN SYSTEM
The focal length 100mm F1.2
FOV 6.2°x4.7°
Focusing Manual Focusing
Focusing Range 8m～∞
Brightness/Contrast Automatically/Manually
The IMAGE PROCESSING
Display 800*600 OLED
Polarity White Hot/Black Hot/Multiple Color Modes
Digital Zoom X2/X4
Video Format MPEG 4
Record Storage And Output (optional) Record Format 640×480；
Built-in 16G Memory Card
THE INTERFACE
Interface Video Output,USB2.0
Installation Interface 1/4′ Standard Tripod Interface
THE POWER SUPPLY
Battery Type 26650 Rechargeable Battery 3.7V＠5000mAH
Battery Life Continuous Working Time≥6hours
Power Consumption ＜3.0W
RANGE
Detection Range For Man :3000m
For Vehicle: 4000m
Recognition Range For Man :1500m
For Vehicle: 2500m
ENVIRONMENTAL ADAPTATION
Working Temp -30°C ~ +60°C
Storage Temp -40°C ~ +70°C
Humidity 5%~95%
Protection IP66
PHYSICAL PROPERTIES
Weight 1.3kg (Including Batteries)
Dimensions 220mm*175mm*68mm
