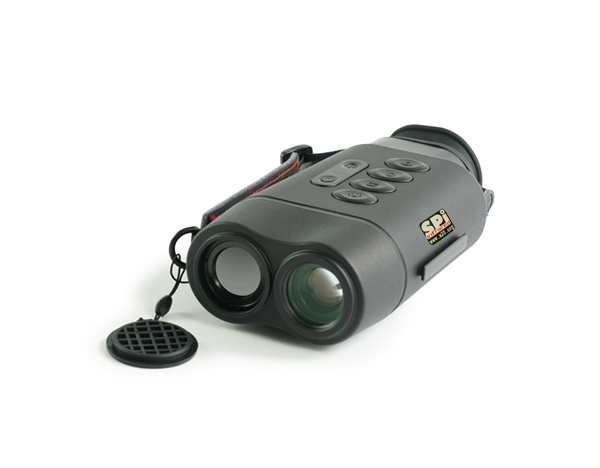

SPI Firestorm T384-75-M

THERMAL MONOCULAR | PART #T384-75-M

CHARACTERISTICS

Detector type: Vanadium Oxide Detector
Resolution: 384 x 288
FOV: 17° X 13° (H x V)

PACKAGE INCLUDES

  • Packing Box
  • Wrist Strap
  • Neck Lanyard
  • Lens Tissue
  • One Lithium Battery CR123A
  • Operators Manual
  • Soft Carrying Case
thermal vison imaging monocular military grade hunting weapons

DESCRIPTION AND FEATURES

THE WORLD’S FIRST GENERATION ALL-IN-ONE FUSION THERMAL MONOCULAR

A Thermal Imager, a low light night vision device, a digital compass, a Range Finder, a thermal camera and the first generation FUSION IR IMAGER, SPI Firestorm Monocular acquires the very best technologies in one device to provide high-precision target detection.

DUAL DETECTOR DUAL VISION

Observe in FOUR modes: IR Mode, Natural Low Light Mode
Smart Fusion Mode and Fusion Color Mode. Switch any time to join a simply clearer Fusion IR world.

DESIGN FOR THE MILITARY AND NOW FOR YOU

With 500g ultra lightweight body, IP67 protection level and 6 hours’ battery life, SPI Firestorm can detect man from up to 900m and vehicles from up to 2160m away.

Long range thermal scopes
Long range PTZ flir camera
Thermal night vision scopes
X26.com long range thermal flir night vision scopes, binoculars, monoculars, goggles, clip on and PTZ imaging systems
Long range PTZ flir camera
Thermal night vision scopes
Long range PTZ thermal flir cameras
Long range PTZ flir camera

SPECIFICATIONS

THERMAL IMAGING
Detector Type Vanadium Oxide Detector
Detector Resolution 384x288px
NETD ＜50mk
Spectral Range 8-14um
Pixel Pitch 17um
FOV 17°X13°
Frame Rate 30Hz
VISIBLE LIGHT
Low Light Imaging Channel 0.4-1.2um
CCD Detector Resolution 2048*2048
Sensitivity 0.0001LUX
FOV 10°x7°
Frame Rate 30Hz
The IMAGE PROCESSING
Display 720×540,LCOS
Image Mode IR MODE/Fusion IR /Fusion Color/Low Light
Brightness/Contrast Manual/Automatic
Digital Zoom 4x
Video Output PAL
Storage Built-in 16G SD Card
Other Features Electronic compass; Rangefinder; Three-dimensional attitude
INTERFACE
Interface USB Power Supply 1/4 Inch Tripod
POWER SUPPLY
Battery Type USB Power Adapter 5V DC
Battery Life ≥6hours
RANGE
Fusion Imaging Distance Detection man:900m;
Detection Vehicle: 2160m
ENVIRONMENTAL ADAPTATION
Working Temp -20°C ~ +60°C
Storage Temp -40°C ~ +60°C
Protection IP67
PHYSICAL PROPERTIES
Weight ≤500g
Dimensions ≤175mm*88mm*50mm
