Detector type: FLIR Tau 2 17µm, Uncooled Microbolometer
Refresh rate: 60 Hz
Resolution: 336×256
FOV: 4.3° x 3.3° (H × V)

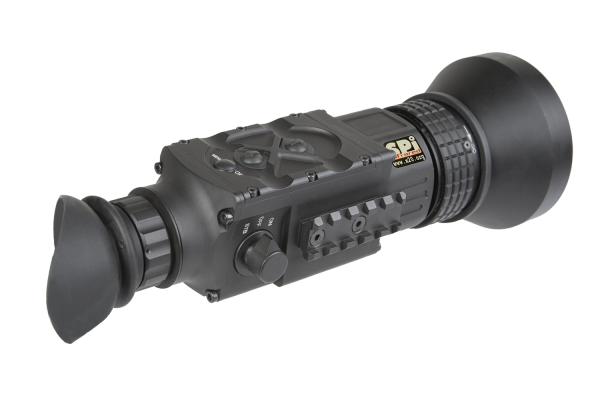

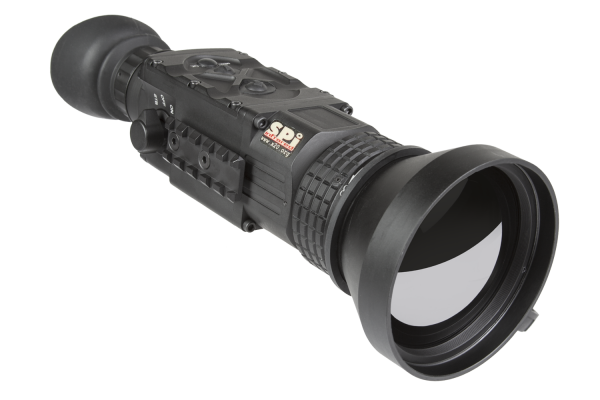

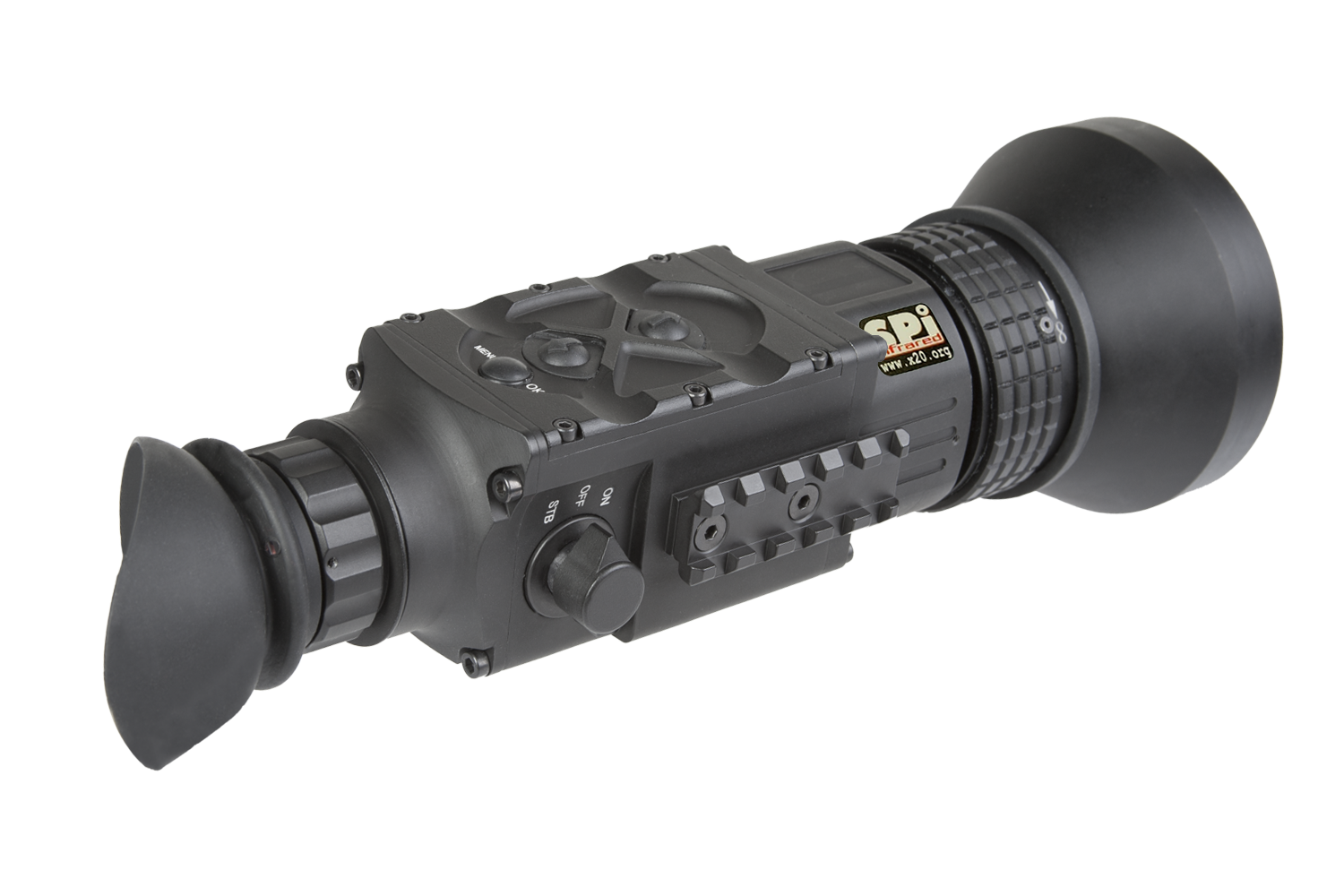

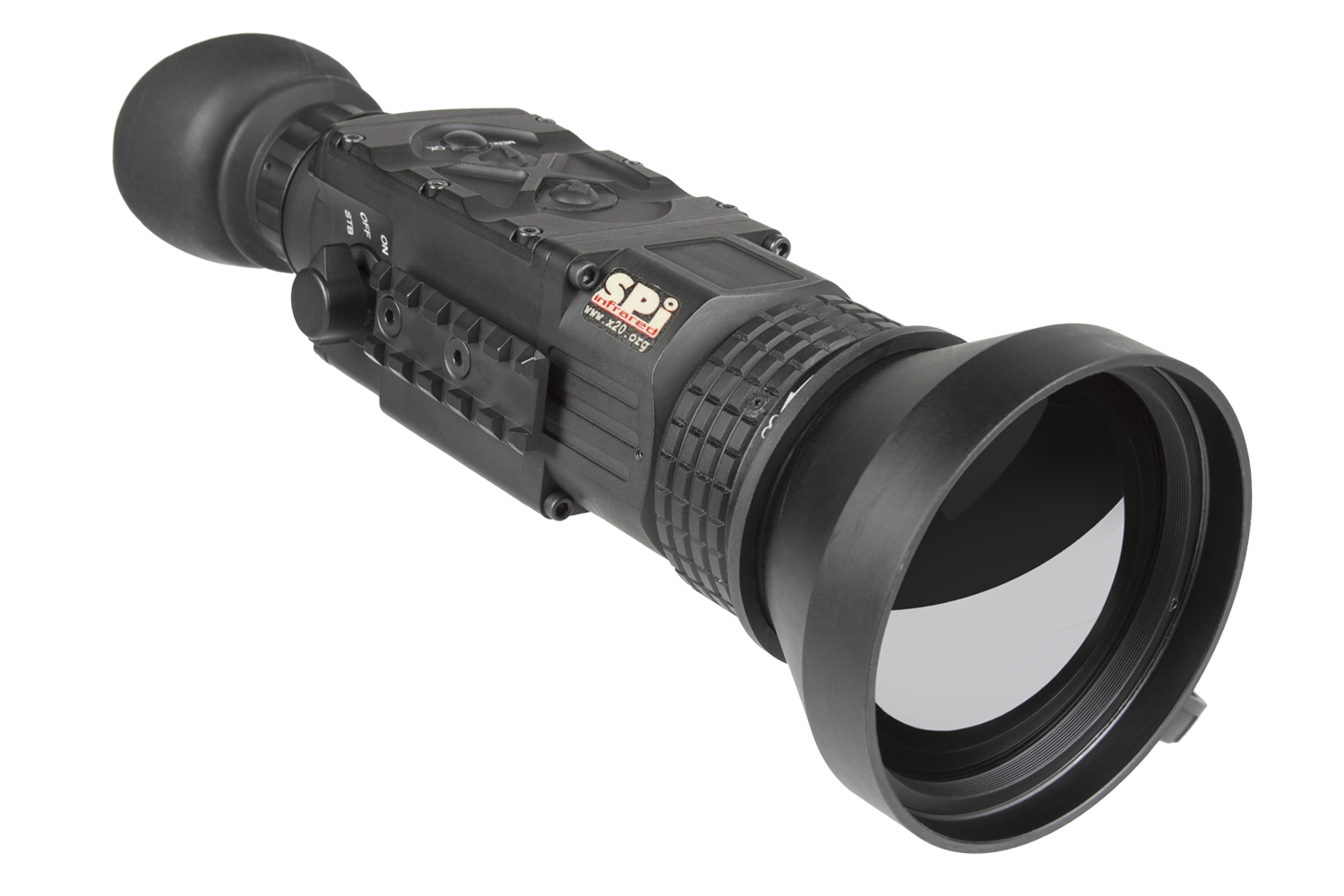

SPI Wasp T336-75-M
THERMAL MONOCULARS | PART #T336-75-M
CHARACTERISTICS
PACKAGE INCLUDES
- Two Lithium CR123A batteries
- Lens Tissue
- Operators Manual
- Packing Box
- Remote Control
- Soft Carrying Case
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES
The SPI WASP represents the line of the most technologically advanced thermal imaging monoculars currently existing on the market. Based on FLIR Tau 2 VOx microbolometer cores and made of high-grade aircraft aluminum alloy the unit guarantees durability and outstanding performance even to the most sophisticated users. This uncooled, long-wave infrared, magnified thermal imaging camera by SPI is designed for fulfilling of both day and night missions irrespective of the environment and weather factors, while a wide variety of objective lenses (25 mm, 50 mm, and 75 mm) enables the operator to use the device as both a compact, pocket-sized thermal imaging monocular, or as a long-range observation tool. The WASP thermal imaging monocular can be easily connected to extended battery pack to increase operational time. Optional WiFi module for live video streaming and recording is also available.
- FLIR Tau 2 17µm pitch thermal sensor
- Durable and lightweight design
- Easy and intuitive operation
- Manually adjustable eyepiece and objective lens
- External WiFi module
- Optional video recording
- A wide variety of color palettes
- Digital zoom: 1x, 2x, 4x, and 8x
- Wireless remote control
- Waterproof
- Integral MIL-STD-1913 rails on unit for optional accessories
- Powered by two standard CR123A batteries
- External power supply via micro USB
SPECIFICATIONS
| Detector type | FLIR Tau 2 336 x 256 17µm Uncooled Microbolometer |
| Refresh rate | 60 Hz |
| Resolution | 336×256 |
| Start up | 3 seconds |
| Lens system | 75 mm; F/1.0 |
| Optical magnification | 5.2× |
| Field of view (H × X) | 4.3° x 3.3° |
| Digital zoom | 1x, 2x, 4x |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 10 m to infinity |
| Display | (800×600) |
| Video output | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Temperature imaging palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack) |
| Battery Type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery Life (Operating) | Up to 4 hr (optional up to 12 hrs) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Weight | 0.83kg (1.8 lbs) |
| Overall Dimensions | 248 × 89 × 89 mm (9.8 × 3.5 × 3.5 in) |
| Package Inludes | Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual |
