Detector type: 17μm Uncooled Microbolometer
Refresh rate: 60 HZ
Resolution: 640 x 512
FOV: 14.8° × 11.8°

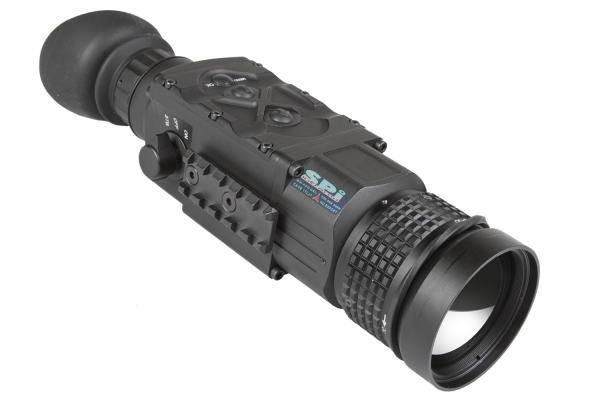

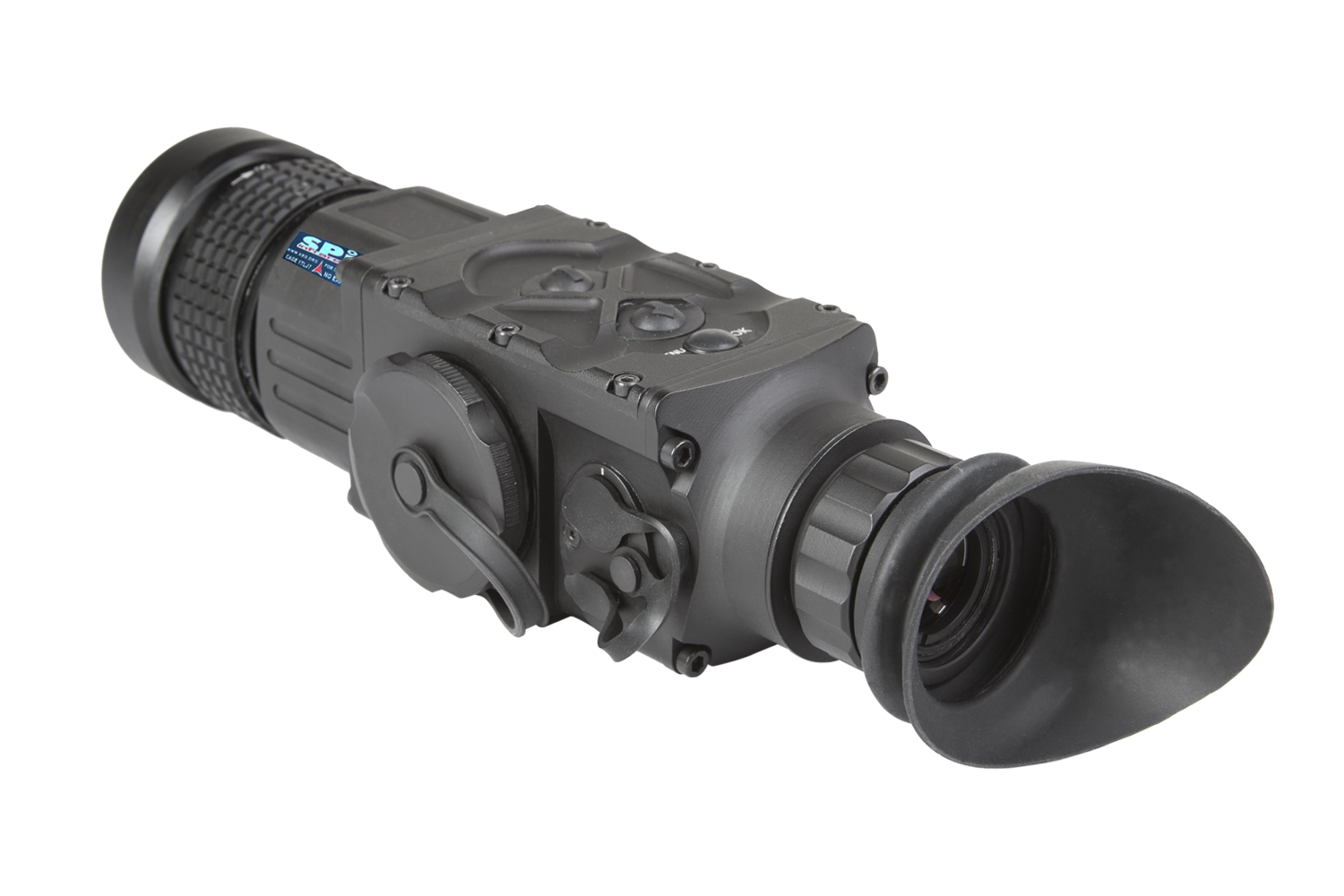

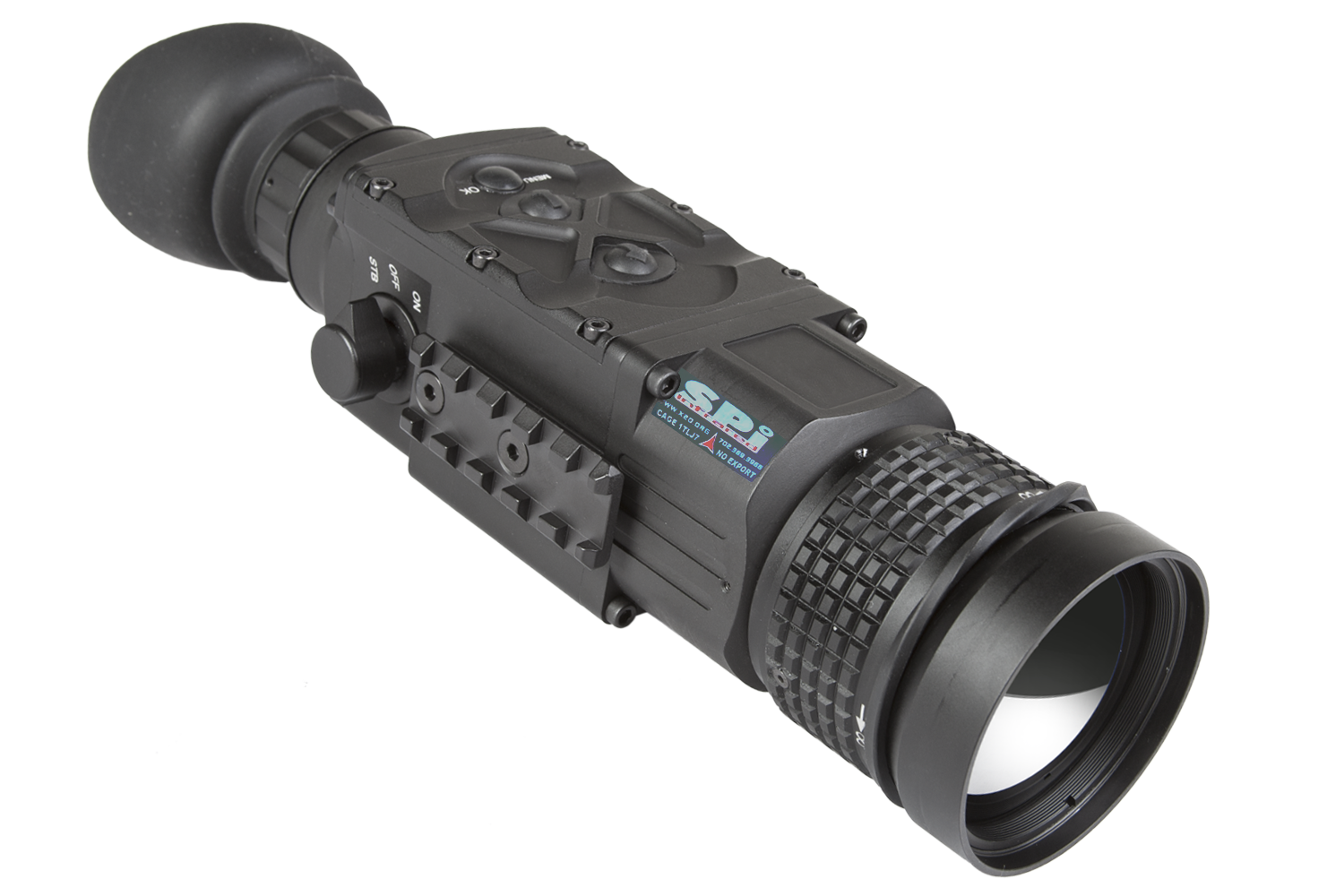

SPI Wasp T640-50-M
THERMAL MONOCULARS | PART #T640-50-M
CHARACTERISTICS
PACKAGE INCLUDES
- Two Lithium CR123A batteries
- Lens Tissue
- Operators Manual
- Packing Box
- Remote Control
- Soft Carrying Case
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES
The SPI WASP represents the line of the most technologically advanced long range SD and HD thermal imaging flir IR monoculars currently existing on the market. Based on US advanced high sensitivity LWIR Microbolometer engine and made of high-grade aircraft aluminum alloy the unit guarantees durability and outstanding performance even to the most sophisticated users. This uncooled, long-wave infrared, magnified thermal imaging camera by SPI is designed for fulfilling of both day and night missions irrespective of the environment and weather factors, while a wide variety of objective lenses (25 mm, 50 mm, and 75 mm) enables the operator to use the device as both a compact, pocket-sized thermal imaging monocular, or as a long-range observation tool. The WASP thermal imaging monocular can be easily connected to extended battery pack to increase operational time. Optional WiFi module for live video streaming and recording is also available.
- US advanced high sensitivity LWIR Microbolometer thermal sensor
- Durable and lightweight design
- Easy and intuitive operation
- Manually adjustable eyepiece and objective lens
- External WiFi module
- Optional video recording
- A wide variety of color palettes
- Handheld IR thermal infrared imaging FLIR camera for drone detection, UAV detection, UAS detection and analysis for CUAS countermeasures
- Zoom: 1x, 2x, 4x, and 8x
- Wireless remote control
- Waterproof
- Integral MIL-STD-1913 rails on unit for optional accessories
- Powered by two standard CR123A batteries
- External power supply via micro USB
- Available in HD XGA 1024 and 1280
- ideal for Long Range surveillance of humans, vehicles, animals, aircraft and UAV/drones
- Catered for handheld thermal infrared imaging FLIR drone detection, UAV detection, UAS detection and analysis for CUAS countermeasure
SPECIFICATIONS
| Detector type | 17μm Uncooled Microbolometer |
| Refresh rate | 60 HZ |
| Resolution | 640 x 512 / ZX model 1024×768 XGA HD |
| Start up | 3 seconds |
| Lens system | 55 mm; F/1.0 |
| Magnification | up to 10 |
| Field of view (H × X) | 14.8° × 11.8° |
| Zoom | 1x, 2x, 4x, 8x |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 5 m to infinity |
| Display | (800×600) ZX model 1024×768 XGA HD |
| Video output | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Temperature imaging palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack) |
| Battery Type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery Life (Operating) | Up to 4 hr (optional up to 12 hrs) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Weight | 0.69 kg (1.5 lbs) |
| Overall Dimensions | 220 × 72 × 60 mm (8.6 × 2.8 × 2.3 in) |
| Package Inludes | Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual |
handheld thermal infrared imaging FLIR drone detection, UAV detection, UAS detection and analysis for CUAS countermeasures
