Worlds Smallest, lightest, highest performing, rock steady long range, high speed EOIR gyro stabilized uav UGV uas Drone HD zoom FLIR thermal EO/IR custom gimbal camera payload system with AI ultra accurate tracking for integrators.

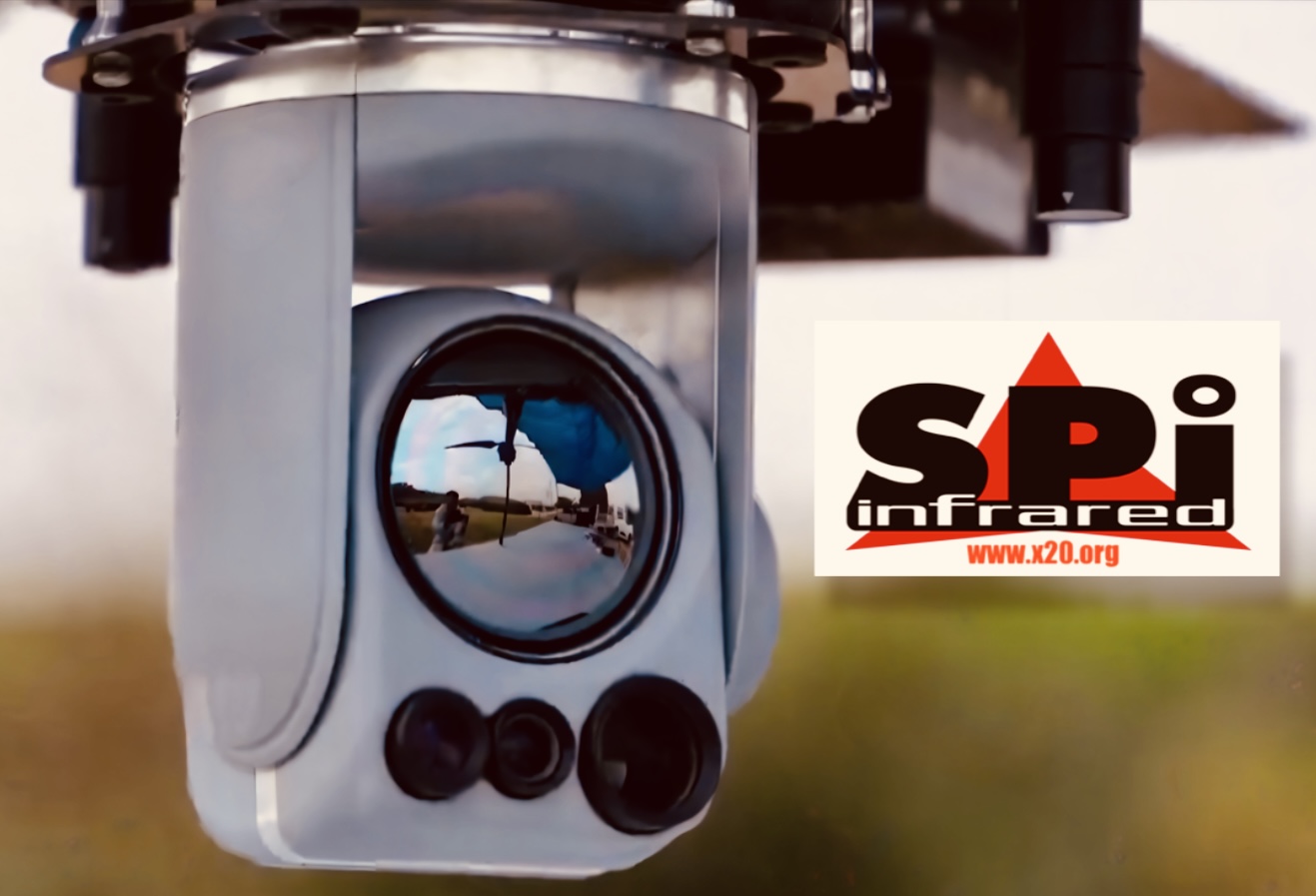

The affordable low cost M2D HD EO/IR gimbal turret payload ball is the worlds lightest, smallest and highest performing PTZ thermal imaging flir auto tracking HD manned/unmanned gyro-stabilized UAV/UGV/USV gimbal.
The M2D turret offers outstanding image quality, stabilization, performance and reliability for a multitude of applications.
NEW FEATURES:
H265 versus H264
H265 provides superior video compression over H264. H265 enables to use a lower bandwidth link while maintaining similar video quality.
Advanced EO/IR Gimbal Geo Reference
By utilizing INS data from the AutoPilot, camera IMU reports + geographic data loaded into the system pre-flight, it calculates longitude, latitude, and altitude.
AI EO-IR real time Object tracking
Our systems can track a target designated by the operator, automatically adjusting the camera’s position to keep the LOS (Line of Sight) centered on the target.
Keep track of multiple targets (the LOS is centered on the main target).
Precision EO/IR License plate reading
Identify a vehicle’s license plate and display it on the OSD (On Screen Display), in addition, the information can be sent to the GCS (Ground Control Station) through a system report. License plate formats from various countries are supported, including the US and EU.
MULTIPLE ADVANCED Stabilized EO/IR Object Detection and Classification
Supports five different types of detectors – Human and Vehicle, Fire & Smoke, Human Overboard, Marine Vessel, and Air Craft. Users can control the detection threshold, minimizing false detections.
Upon detection, the units can automatically track the target, zoom in to the target and halt platform movement upon detection.
EOIR stabilized VIS/IR/PiP DuoZoom / Fusion / Side by Side Image presentation
Stream video from both EO and IR channels simultaneously. The two video streams can be displayed in the following ways: PIP (Picture in Picture), DuoZoom SBS (Side by Side), and Fusion (IR video on top of visible video – Seamless Pixel By Pixel image fuse).
EOIR Precision Coordinate Refinement
The system can identify its location and receive more accurate geo location data. Three Dimensional Modeling and mapping, Record metadata on pictures in a format suitable for 3D models and maps.
EO/IR Docker
Run user applications on The MVP/9960 and 9965 modules by using docker containers, Rather than adding a dedicated platform processor in order to reduce weight, and power consumption
LossLess Imagery
While GPS is available, The M2D will be used in regular manner. When GPS becomes unavailable, the pair can be used to obtain camera/platform location. The unit reports the location (LAT/LON) of the gimbal/platform by analyzing the video stream against a stored orthophotograph without using GPS data.
EO/IR Image Enhancement
When Image enhancement is ON, The MVP/9965 enhances the colors of the EO/IR video stream resulting in a more detailed image for obtaining minute subtle objects of interest.

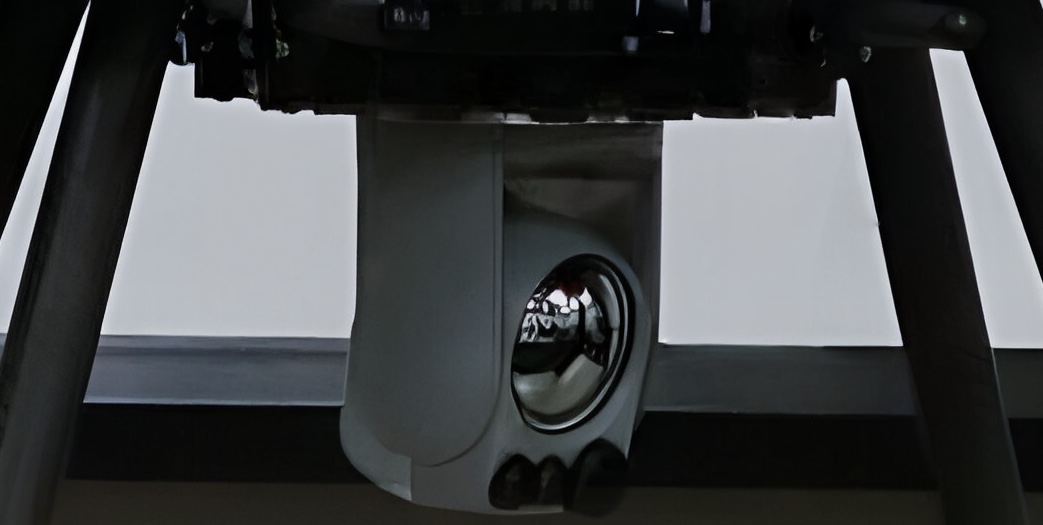

M2-D Mini Gyro Stabilized EO/IR UAV UAS Multicopter Drone FLIR Thermal Imaging camera turret ball
M2-D Mini Gyro Stabilized EO/IR UAV UAS Multicopter Drone FLIR Thermal Imaging camera turret ball
Long range cooled mwir EO IR zoom HD gyrostabilized multi axis drone thermal imaging flir gimbal with laser and LRF rangefinder
M2-D MINI GYRO STABILIZED EO/IR UAV UAS MULTICOPTER DRONE FLIR THERMAL IMAGING CAMERA TURRET BALL
M2-D GYRO STABILIZED DRONE THERMAL CAMERAS EO-IR GIMBAL WITH FLIR CAMERA, OPTICAL ZOOM IN A SMALL LIGHTWEIGHT 160 GRAM PAYLOAD. GYRO STABILIZED GIMBAL FOR DRONES, UAS, UAV SUAS AND UGV MOUNT APPLICATIONS
AVAILABLE IN HD THERMAL IR FLIR IMAGING CHANNEL
New: MVP/9960 AI Module
Offers additional Advanced capabilities, EO/IR object tracking, geo location, video compression, IP Streaming, video recording, LTE, and license plate recognition capabilities. EO/IR object tracking directs the M2D gimbal to precisely track a subject within the gimbals range, ensuring the subject of interest never leaves the view. Geo location captures the position of the M2D, its line of sight, and extracts location of observed objects with unprecedented accuracy. Video compression and IP encapsulation provides significantly low latency compression enabling long range operation. The MVP9960 records high quality video with GPS metadata attached and keeps snapshots to a MicroSD card for simple access and expansion.
MVP/9960 H1 – Human & Vehicle Detection and Classification License is offered to 9960 system users. H1 detects and classifies humans, private vehicles and small trucks in the video. H1 will mark the detected object on the image (OSD) and will describe its type. In addition, H1 will send a report message upon detection and classification. If the image includes multiple objects, H1 will mark and report all of them.
MVP/9960 F1 – Fire & Smoke Detection and Classification, license is offered to 9960 system users. F1 detects and classifies fire and smoke in the video. F1 will mark the detected object on the image (OSD) and will describe its type. In addition, F1 will send a report message upon detection and classification. If the image includes multiple objects, F1 will mark and report all of them.
MVP/9960 H2 Human Overboard Detection and Classification, license is offered for 9960 system users. H2 detects and classifies human in water at the video. H2 will mark the detected object on the image (OSD) and will describe its type. In addition, H2 will send a report message upon detection and classification. If the image includes multiple objects, H2 will mark and report all of them
Additional capability offered by the 3 above listed features is to zoom in on the object upon detection and initiate object tracking.
Intelligent Advanced Modules for M2D EOIR Gimbals
MVP/9959
In addition to seamless Pixhawk integration, the MVP/9959 provides object tracking, Geo Reference, Roll De- rotation, Video compression, Video streaming over IP and Video recording.
MVS/9958
MVS/9958 is a simplified version of the MVP/9959 but lacks tracking capabilities. PixHawk Adapter
The PixHawk adapter allows seamless integration between M2D Gimbals and the PixHawk but lacks video processing capabilities and the rest of the MVP feature. The PixHawk Adapter receives RC_CHANNELS MAVLINK message from the PixHawk serial interface and converts it to camera commands (e.g., pan / roll / zoom in out / etc). Note: PixHawk adapter cannot be used together with MVP/MVS Modules
MVP/9960
The next generation of Advanced modules, The MVP/9960 supports all the features of the MVP/9959 and expands upon them. MVP/9960 is capable of License plate reading (LPR) and object detect & classification. 9960 interfaces
with all M2D Gimbals equipped with an HD interface. An internal 4G LTE modem can be integrated with the module. MVP/9965
The latest version is faster and has more processing power system can determine the platform’s location when GPS is not available and maintain an object’s index across multiple frames.
MVP MODULES FEATURES
H265 versus H264
H265 provides superior video compression over H264. H265 enables to use a lower bandwidth link while maintaining similar video quality.
Geo Reference
By utilizing INS data from the AutoPilot, camera IMU reports + geographic data loaded into the MVP 9960/9965 pre- flight, the system calculates longitude, latitude, and altitude.
Object tracking
The MVP 9959 / 9960 and 9965 can track a target designated by the operator, automatically adjusting the camera’s position to keep the LOS (Line of Sight) centered on the target.
MVP/9959 can only track a single object while the MVP 9960 and 9965 can keep track of multiple targets (the LOS is centered on the main target).
License plate reading
The MVP 9960 and 9965 can identify a vehicle’s license plate and display it on the OSD (On Screen Display), in addition, the information can be sent to the GCS (Ground Control Station) through a system report. License plate formats from various countries are supported, including the US and EU.
MULTIPLE ADVANCED Object Detection and Classification
Both The MVP 9960 and 9965 supports five different types of detectors – Human and Vehicle, Fire & Smoke, Human Overboard, Marine Vessel, and Air Craft. Users can control the detection threshold, minimizing false detections.
Upon detection, the units can automatically track the target, zoom in to the target and halt platform movement upon detection.
VIS/IR PIP DuoZoom / Fusion / Side by Side
9960/9965 can stream video from both channels simultaneously. The two video streams can be displayed in the following ways: PIP (Picture in Picture), DuoZoom SBS (Side by Side), and Fusion (IR video on top of visible video – Seamless Pixel By Pixel image fuse).
Coordinate Refinement
The MVP 9960 and 9965 can be loaded with an orthophotograph of the flight area containing precise geographic metadata. Using image processing techniques, the system can identify its location and receive more accurate geo location data.
Three Dimensional Modeling and mapping
The MVP 9960 / 9965 can record metadata on pictures in a format suitable for 3D models and maps.
Docker
User application can run on The MVP 9960 and 9965 hardware by using docker containers. Running user application on The MVP 9960 and 9965 instead of adding a dedicated platform processor reduces weight, power consumption, and results in a smaller form factor.
LossLess
While GPS is available, The M2D and MVP/9965 will be used in regular manner. When GPS becomes unavailable, the pair can be used to obtain camera/platform location. The MVP/9965 unit reports the location (LAT/LON) of the gimbal/platform by analyzing the video stream against a stored orthophotograph without using GPS data.
Image Enhancement
When Image enhancement is ON, The MVP/9965 enhances the colors of a 720p video stream resulting in a more enhanced image for obtaining minute subtle details.
JUST RELEASED M2D v6 ultra high performance
lightweight HD long range EO/IR gimbal
AVAILABLE WITH INFRARED OR VISIBLE 0.5 mRAD LASER
UPDATE; NOW AVAILABLE M2D v4D with IR and LONG RANGE 80x
TELEPHOTO EO ZOOM CHANNEL
Highly accuracy drone thermal camera with long range telephoto optical zoom
in both Eo CCTV camera and Ir flir thermal camera
NEW M2D UAV UGV UAS DRONE STABILIZED
TURRET BALL EOIR ISR FLIR GIMBAL
VIDEO CHANNEL LINK
CLICK HERE FOR THE UPDATED M2D EOIR FLIR HD THERMAL GIMBAL SITE
JUST RELEASED M2D v6 ultra high performance
lightweight HD long range EO/IR gimbal
AVAILABLE WITH INFRARED OR VISIBLE 0.5 mRAD LASER
NEW M2D UAV UGV UAS DRONE STABILIZED
TURRET BALL EOIR ISR FLIR GIMBAL
VIDEO CHANNEL LINK
– BROCHURE- CLICK HERE FOR the M2-D MICRO STABILIZED GIMBAL EOIR FLIR MINI GIMBAL DATA SPEC SHEET
– BROCHURE – M2D_Gimbal_install_basic_Data_EOIR_Integration_Updated
– BROCHURE – SPI M2D Gyro Gimbal Integration Data Sheet EO-IR
– BROCHURE – M2D_Gimbal_Gyro_Stabilization_FLIR_EO_IR_integration Data
– BROCHURE M2D_FLIR_VISUAL_EOIR_GYRO_STABILIZED_DRONE_UAV_UAS_GIMBAL_DATA_REV65
– BROCHURE M2D_full_axis_protocol_for_Integration_EO_FLIR_IR_Data_sheet_DJI_Universal_Drones_install
– BROCHURE M2-D gimbal turret payload data Camera Pinout
– BROCHURE M2D_Gimbal_mounting_option_DUAL_Channel_FLIR_EO_OPTICAL_ZOOM_TELE
– M2-D EOIR GIMBAL_DJI INTEGRATION CONFIGURATION
There are many unmanned EOIR gimbals available in the marketplace to choose from varying in price and performance, the search for the “Perfect” imaging gimbal for your UAV can be a daunting one with so many UAV GIMBAL options. Look no further, SPI has coupled the worlds best materials, mechanicals, electronics and sensors into one divine low cost imaging payload. The affordable M2-D drone thermal camera UAV GIMBAL is an all weather, rugged micro mini gimbal for drones, uav, uas, Suas, multicopter, unmanned aerial vehicle, land and marine applications, Rock steady stabilization on all Axis ensures the imagery remains steady while moving. Optical Telescopic telephoto zoom is included in both the EO channel as well as the thermal imaging FLIR camera channel. Weighing in at 160 Grams, the M2/D is the worlds smallest, lightest and highest performing gimbal ball turret payload thats simple to integrate into any platform. Imaging is displayed in Wide field of view with zoom to get tight distant targets incorporating both optical and digital zoom. similar systems cost 3 to 4 times as much and dont deliver the performance as the M2-D. Priced at $9995.
We are now offering long range 82X Gyrostabilized gimbals at $5990
The M2-D is affordable for users seeking high end multi sensor gyro stabilized applications. The M2-D offers Zero backlash extremely accurate positioning, high impact, rugged housing, retractable housing, additional mechanical dampeners to further keep the unit and imagery Rock steady. Ultra smooth powerful yet precise motors with extreme accuracy stabilize the shakiest and harshest/windiest missions. High speed payload aiming with great accuracy mechanics coupled with optimal image quality sensor electronics make the M2-D the premier unmanned eo/ir imaging platform available anywhere.
SPI UTILIZES HIGH SENSITIVITY, HAND SELECTED THERMAL INFRARED IMAGING DETECTORS ENSURING THE BEST IR PERFORMANCE
Thermal FLIR Image of the M2D at 384×288 resolution, our modified thermal sensors are programmed for optimal sensitivity. The 640×512 M2D drone thermal camera offers long range Ir flir imaging and has exceptional sensitivity for enhanced DRI.
The system is suitable for custom drones as well as COTS Multicopters like DJI models. The unit offers phenomenal lift and endurance dynamics along with easy integration for end users, developers, integrators, UAV designers and manufacturers. The M2-D is fully universal and is all open source which ensures simple integration into any system.
The M2D is a precision, high resolution, high sensitivity micro Mini dual-channel EO/IR steerable multi axis stabilized camera with an incredible light weight of 160 grams [5.6 oz]. The M2D provides unparalleled capabilities in its weight category, providing an excellent choice for those in need of a light and powerful camera Gyro Image Stabilized camera system..
Micro Stabilized FLIR Thermal and Visual UAV Payload M2-D
SIERRA PACIFIC SEPTEMBER 11, 2015 GIMBAL, STABILIZED GIMBAL, UNCATEGORIZED LEAVE A COMMENT
A micro gimbal for UAV and vehicle use that only weighs 160 grams is an amazing thing all by itself. But a micro gimbal that weighs 160 grams, has both a FLIR thermal camera and a visual camera with optical zoom and is gyro stabilized now that is something that you would call impossible. But its not. It is real. The unbelievable new M2-D micro stabilized gimbal features a 640×480 high resolution thermal camera with all the features (gain, level, polarity, color, digital zoom, etc). Co located is a very nice EO visual camera with OPTICAL zoom. Thats right this is not a kludge digital zoom but a true optical zoom down to 4.5 degrees FOV. Then of course there is a digital zoom kicker on top of that. Normally a 4 degree FOV in a UAV or ground vehicle will produce a very shaky unusable image. Thats why everyone fly’s with the consumer grade GoPro with its super wide angle lens. When using wide angle optics it is very easy to get smooth relatively shake free images but it is also very hard to get usable imagery and detail from any altitude. Try reading license plates with a GO PRO (maybe if your flying at 10′ AGL). The M2-D has advanced gyro stabilization just like the $1,000,000 FLIR balls that they fly on helicopters and military aircraft. This degree of stabilization is way beyond the consumer stuff you see on the web. With the Micro M2-D Gyro Stabilized EO/IR gimbal you can zoom in and read license plates from hundreds of feet AGL. This becomes a very useful tool for a wide range of applications. Ideal for a multitude of rotary and fixed wing uav’s, uas, ugv, multicopters, quadcopters, hexacopters. The unit is also compatible with DJI products.
The system is now available in high definition HD 1280 thermal imaging Flir IR channel and 1920 vivid HD visible CMOS/BSI EO channel
The M2-D is built to the most exacting standards to withstand the harsh environment of UAV and Ground vehicle operation. There are also a host of accessories to make integration into any flying platform a breeze. There is a series of mounting options starting with a basic hard mount shock absorbing plate all the way up to a full blown retractable affair that can lift the payload completely up and into the body of the UAV when needed.
Control is also simple. There is a PC interface for bench use or integration into a larger software driven system. But, the most popular feature is the handy protocol converters. These tiny boxes can interface with any common Radio Control format. There is a PWM interface and a hot SBUS interface. Both easily integrate with auto pilot or manual controllers. They are both fully map-able via USB interface and included software.
Finally (as if this wasn’t enough), there is a geo reference tracking module that allows the unit to be directed to specific geo target locations and also return specific coordinates of any spot on the ground being viewed. This is real top end hardware and amazingly available in the ultra compact Micro Stabilized M2-D gimbal platform.
Its clear that the UAV imaging payload world has been stood on its head by SPI CORP. The M2-D is higher performance than any other system on the market. But that’s just the beginning of the story. The M2-D is about 1/4 the size of anything else on the market with these features and to seal the deal it is also a fraction of the price of anything ever made.
Size: 160g palm of the hand – Now available in 120 gram EOIR PACKAGE
Payload: FLIR THERMAL AND VISUAL WITH OPTICAL ZOOM
Stabilization: GYRO STABILIZED
Tracking; Auto-track
Price: Fraction of any other system
- Visible channel EO
- 1920 HD
- PAL / NTSC day camera
- Zoom : 40x or 80x
- HFOV : 30° WFOV – 4.7° WFOV – 2.3° DFOV down to 1 degree
- Thermal channel FLIR
- PAL / NTSC thermal camera
- Resolution: 1280 HD or 640 x 512 / 384 x 288
- LWIR uncooled 7-14µm
- Zoom : continuous zoom
-
- Range of rotation / Data
- System: sealed 100% duty cycle
- Tilt : -45° to 135
- Angular Velocity : Up to 105deg/sec
- Power Requirement : 9-32 VDC
- Power Consumption : <10W
- Temperature : -20°C [-4°F] to +55°C [131°F]
- Dimensions :
- Diameter : 53mm [2.099”]
- Height : 78mm [3.07”]
- Weight : 160 grams [5.5 oz.]The M2-D Gyro stabilized Mini Gimbal ball provides superior image quality both during day and night times, outstanding gyro stabilization, and low power consumption. It incorporates top-of-the-line components: a sensitive thermal FLIR sensor, high-end motors, hardened/coated optics, all at an affordable SWaP package. Ideal for quadcopters, hexacopters, multicopter, fixed wing & rotary, unmanned copters, drones, UAV, UGV, SuAS and all remote vehicles.
The M2-D is a third generation product, the rock steady gyro stabilized EO IR camera is the most powerful, lightest and smallest production gimbal in the world. Fully compatible with all third party software and hardware.
The M2-D delivers EO, ZOOM, IR, Gimbal & Stabilization – all within 160 grams. The EO daytime color/low light camera of the M2D incorporates long range EO zoom. The long range thermal FLIR camera channel of the M2-D can incorporate either 1280 HD 640×512 or 384×288 resolution. Spi has been building robust high quality EOIR equipment for almost 2 decades for industrial, law enforcement, law eforcement and military customers.
All of our systems offer solid gyro stabilization, exceptional auto tracking and user defined full system control customization.
The M2D Mini UAV UAS drone thermal flir gimbal Payload Represents one of the smallest stabilized EOIR LWIR Uncooled Gimbal in the market today!
Complete long range zoom EO-IR gimbal camera systems can house long range LWIR MWIR SWIR high-definition video tracking, target tracking and image enhancement and processing capabilities. Multi sensor gimbal payload systems enable users to select a range of cameras and sensors unique to individual mission requirements and can be deployed onboard a broad selection of fixed-wing UAVs, unmanned helicopters, UGVs and USVs. We have laser pointers and LRF laser rangefinder options as well.EO IR Sensors for UAVsEO-IR sensors and camera systems are suited to a broad spectrum of unmanned aerial platforms, including VTOL multirotor UAVs, fixed-wing and hybrid UAVs, as well as tethered drones, aerostats and balloons. In addition they can be fitted to fixed site installations, unmanned ground vehicles (UGV) and unmanned surface vehicles USV).Miniature EO/IR GimbalsDeveloped for short, medium and long-range aerial missions, EO/IR gimbal payloads for UAVs are designed to meet a variety of SWAP (Size Weight and Power) requirements. Often miniature EO/IR gimbals are engineered for specific mission types and conditions, for example daytime, night-time and tactical operations. Lightweight and easy to mount, they can be efficiently swapped out depending on drone and/or mission requirements.Gyro-Stabilised EO/IR GimbalsDepending on the type and maximum payload capacity of the UAV or unmanned system, gyro-stabilized EO/IR gimbals can have 2, 3 or 4 axis:
-
2-axis gimbals – gyro stabilized pitch and roll
-
3-axis payloads – gyro stabilized yaw, pitch and roll
-
4-axis systems – gyro stabilized yaw, pitch and roll, plus up and down motion
