Detector type: High sensitivity Uncooled Microbolometer
System: Tactical Long range thermal binocular for security/surveillance
Refresh rate: 60 Hz
Housing: Rugged, all weather
Resolution: 640 x 512
FOV: 8.3° × 6.6° (H x V)
DESCRIPTION AND FEATURES

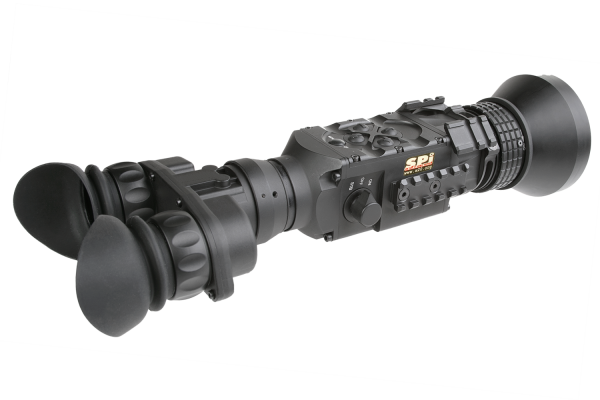

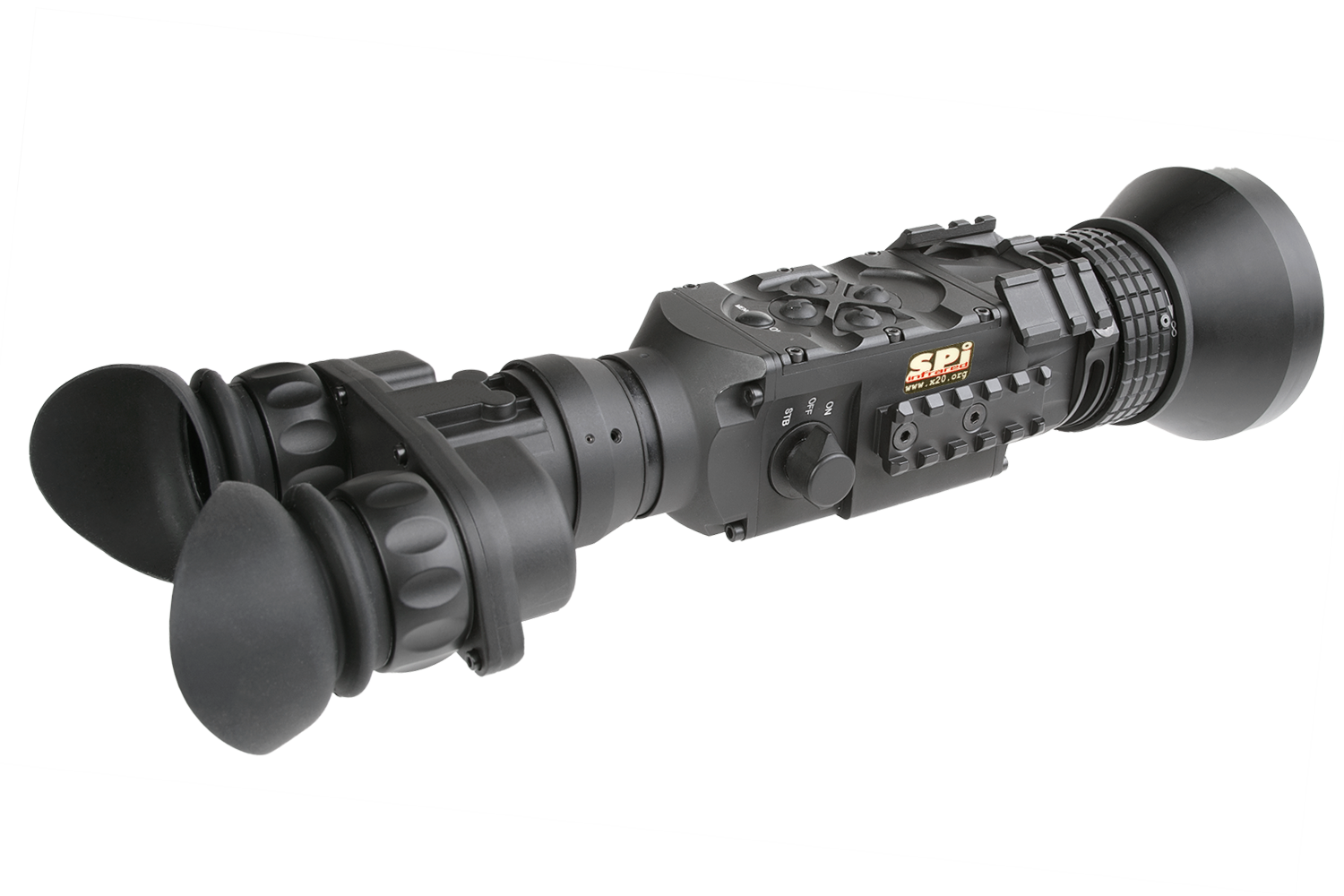

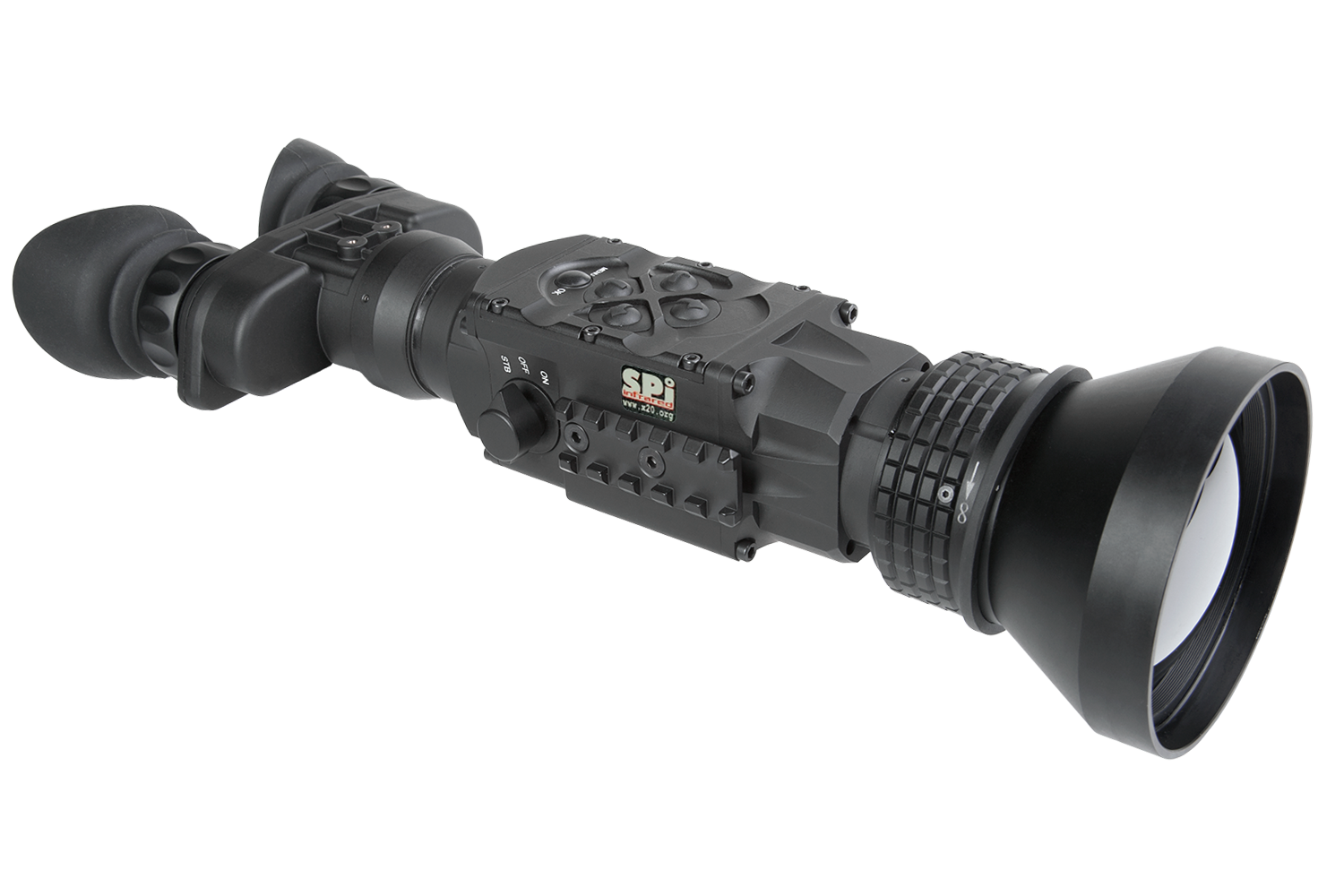

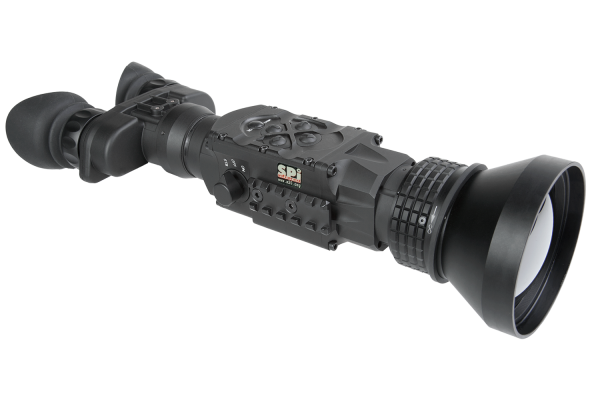

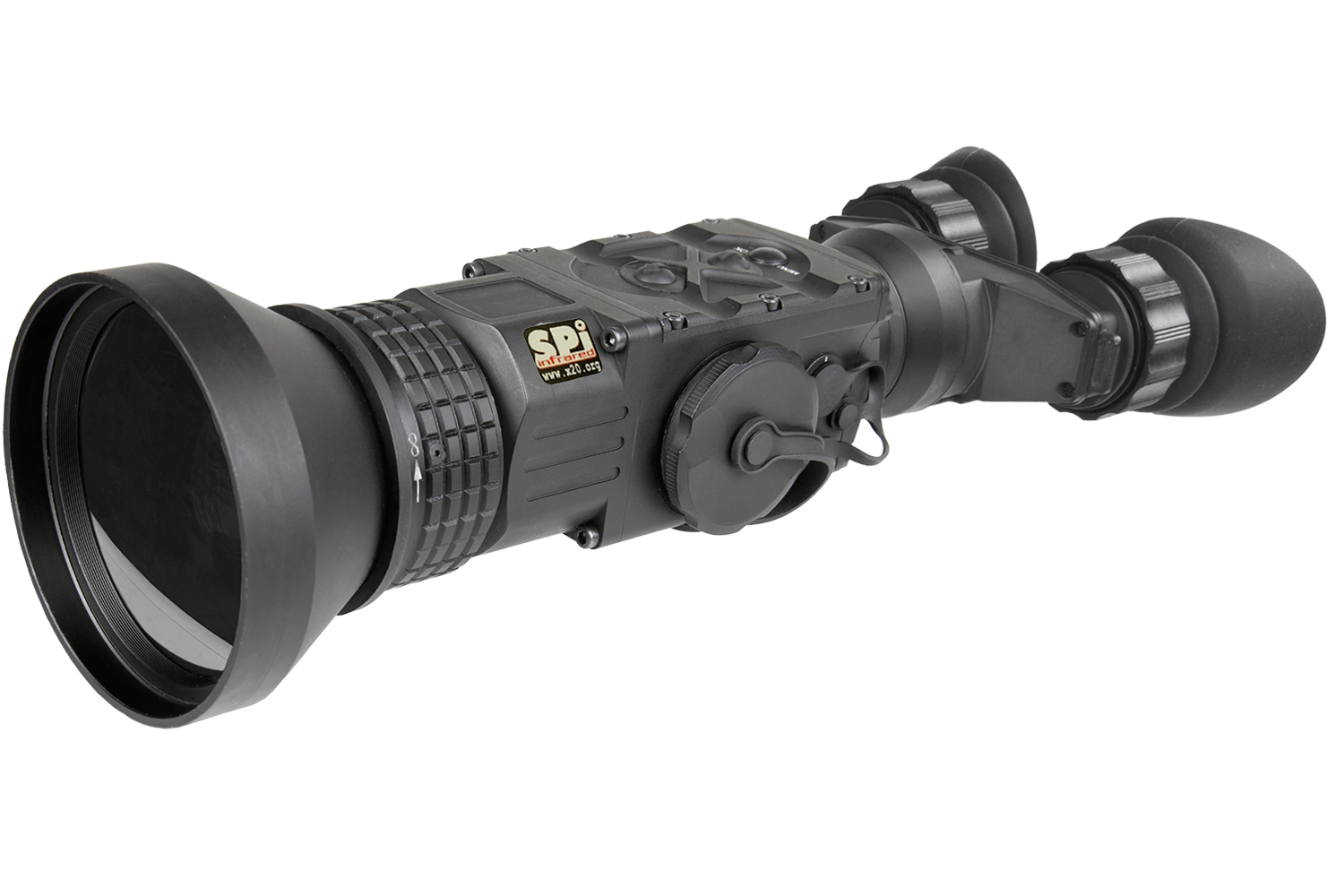

The SPI Hornet long range thermal binocular is the latest and most technologically-advanced thermal imaging device for observation currently available on the market. The hornet long range thermal binocular is made of high-grade aircraft aluminum alloy, making the unit both durable and lightweight. Due to its waterproof capability the Hornet performs well even in severe weather conditions and challenging environments. The Hornet’s user-friendly interface, comfortable and ergonomic buttons, together with the wireless remote control makes adoption and application incredibly simple. Based on high-resolution, high sensitivity VOx microbolometer thermal imaging engine, the Hornet offers a variety of image palettes: white hot/black hot/ Rainbow, etc. that can be easily adapted depending on different environmental conditions. This high-tech long range thermal binocular can take either two CR123A 3V Lithium Batteries or two CR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7 V. In addition, the external battery pack connected via standard micro-USB port provides an additional operating time.
- High-resolution high sensitivity thermal sensor
- Dual eye viewing system for comfortable, extended viewing sessions
- Lightweight and robust design
- Multiple scene configurations for different environments
- Easy to operate device
- Manually adjustable eyepiece and objective lens
- Real-time display
- Multiple color palettes
- Zooom: 1x to 8x
- Wireless remote control
- Waterproof
- External Wi-Fi module via micro USB
- Integral MIL-STD-1913 rails on unit for optional accessories
- Powered by two standard CR123A batteries
- External power supply via micro USB
- Tripod mountable
SPECIFICATIONS
| Detector type | Uncooled Microbolometer |
| Refresh rate | 60 Hz |
| Start up | 3 seconds |
| Lens system | 75 mm; F/1.0 |
| Optical magnification | 3x |
| Field of view (H × X) | 8.3° × 6.6° (H x V) |
| Digital zoom | 1x ~ 8x |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 5 m to infinity |
| Display | OLED Color |
| Video output | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Temperature imaging palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack) |
| Battery Type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery Life (Operating) | Up to 4 hr (optional up to 12 hrs) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Weight | 1.14 kg (2.5 lbs) |
| Overall Dimensions | 312 x 109 x 89 mm (12.2 x 4.2 x 3.5 in) |
| Package Inludes | Thermal imaging bi-ocular, Lens Cloth, Soft Carrying Case, User Manual |

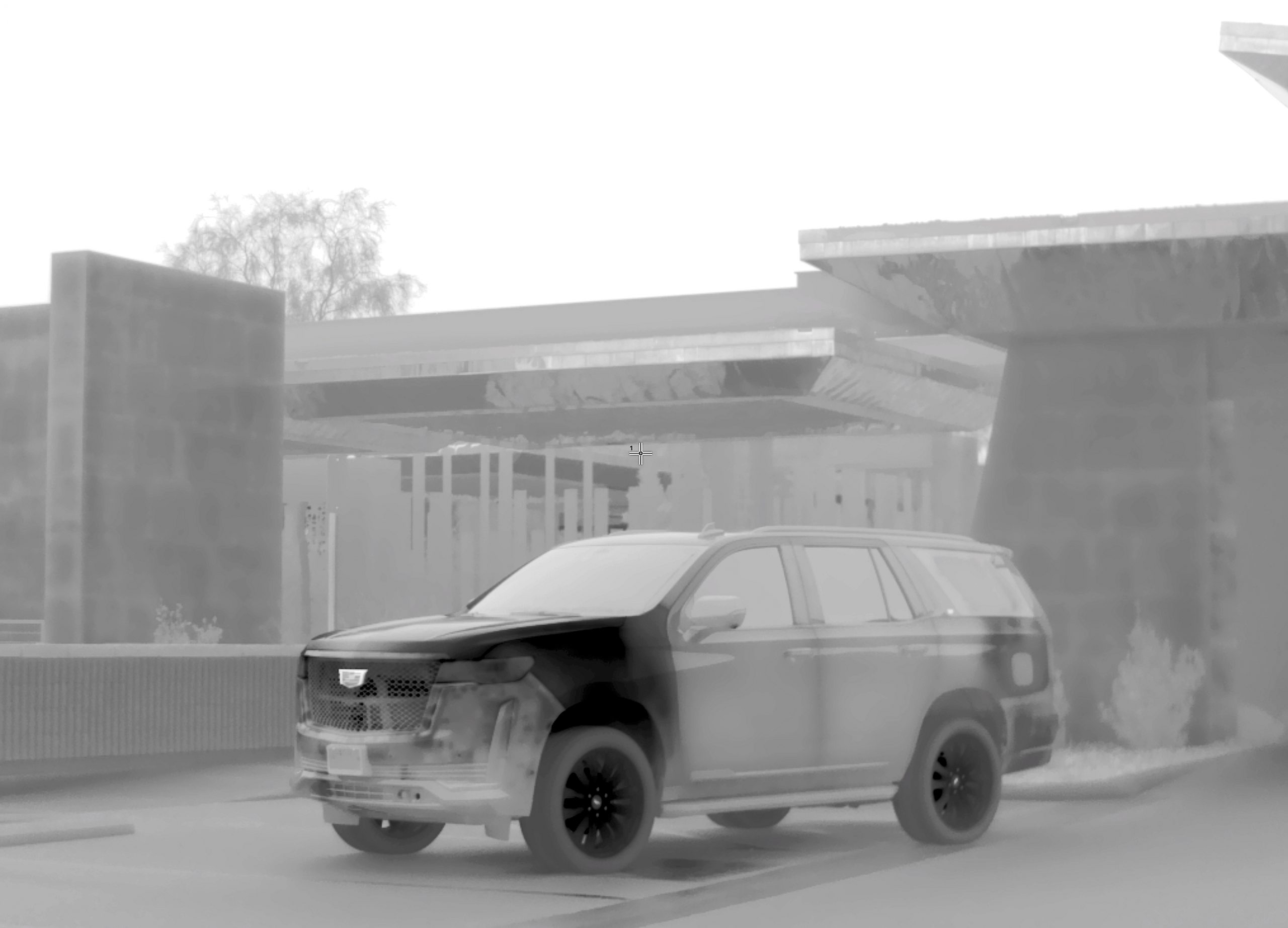

SPI long range thermal binocular devices use the latest in cutting-edge technology and infrared imaging. This allows them to pick up temperature differences and changes that occur with both natural and man-made objects and use that data to generate an image. This enables visibility in near to total darkness, across rough terrain, and through challenging or changing weather conditions.
Our long range thermal binoculars utilize the scientific principles of black body radiation (any object with a temperature above absolute zero must emit infrared radiation). Thermal photography, or thermography, works by detecting the level of radiation that an object emits, which will change in response to any increases or drops in that object’s temperature, even if those variations are very subtle.
SPI is dedicated to using the latest technologies available to develop elite thermal binoculars. These technologies allow you to customize your device dashboard, choose from several color pallets options, and either manually or automatically reduce pixelation. All of our binoculars are made of high-grade aircraft aluminum alloy, making the them both lightweight and highly durable.
SPI military grade long range thermal binoculars are Rugged, all weather, state of the art dual eye thermal imaging flir systems. These devices come in uncooled LWIR And Cooled MWIR thermal imaging sensor Choices both in standard definition and in HD high definition. Utilizing small micro pitch detectors, our long range thermal binoculars pack optics that can reach out in excess of 10 kilometers for human and vehicle detection applications, this is considered very long range especially in total darkness for a handheld thermal imaging unit. Our handheld long range thermal imaging binoculars also come with a variety of complementary Sensors to add for mission readiness. Sensors like laser rangefinder’s (LRF), infrared laser pointers, infrared laser illuminators complementary lowlight HD visual day cameras, our EO/IR long range thermal binoculars also have GPS and DMC (Digital Magnetic Compass) modules for geolocating capabilities. Our military grade long range thermal binoculars are a premier choice by military and border protection personnel, the advantage of using thermal binoculars is the ease of viewing especially for long durations while using both eyes. Our thermal cameras offer the user crisp, clear image quality with outstanding detail, clarity and fidelity. Long range thermal binoculars housing tend to be bigger in size compared to Long range thermal monoculars, this extra real estate in the housing allows for the incorporation of the additional optics, sensors, and modules making up a complete multiSensor thermal binoculars system.
Our thermal binoculars come with many built-in features and a robust selection of included and optional accessories, like IP 65-IP 68 protection, high-grade aluminum alloy housing, a variety of Germanium objective lenses, wireless remote control, digital zoom and menu navigation, and more.
