Detector type: FLIR Tau 2 17μm Uncooled Microbolometer
Refresh rate: 60 Hz
Resolution: 336 x 256
FOV: 7.8 ° × 5.9° (H x V)
SPI Dauber T336-50-C
THERMAL CLIP-ON SYSTEMS | PART #T336-50-C
CHARACTERISTICS
PACKAGE INCLUDES
- Remote Control
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES

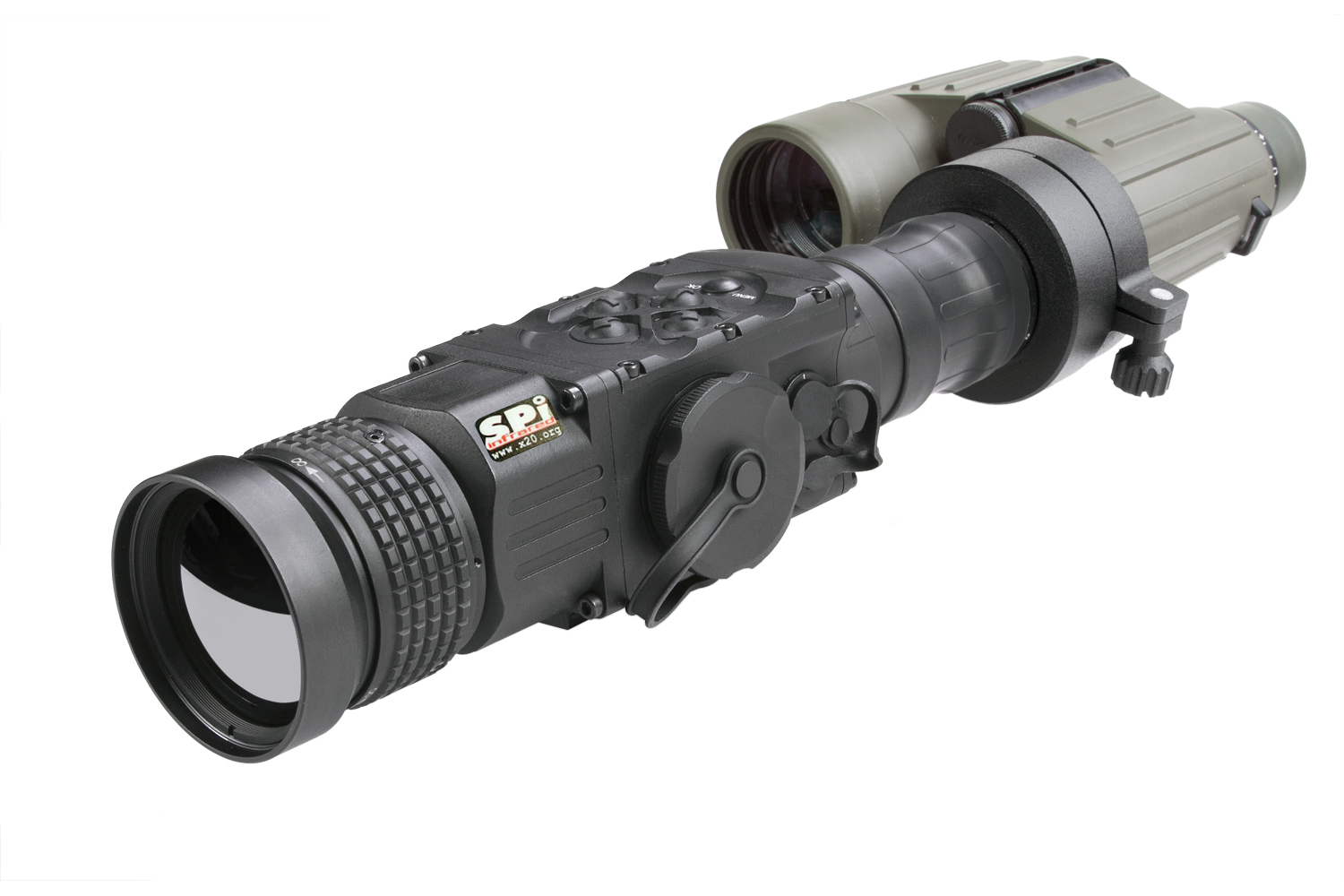

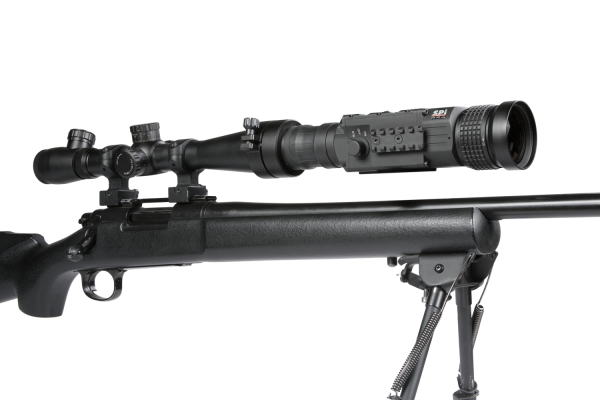

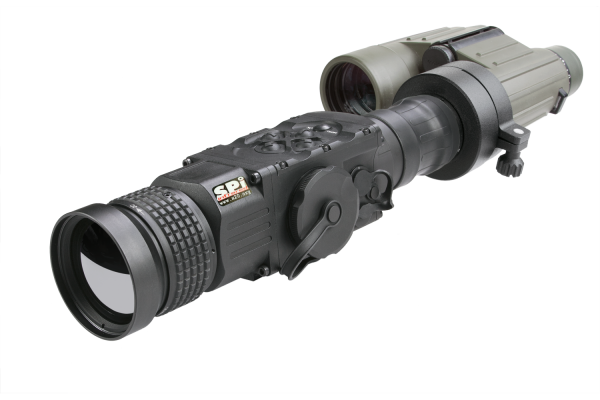

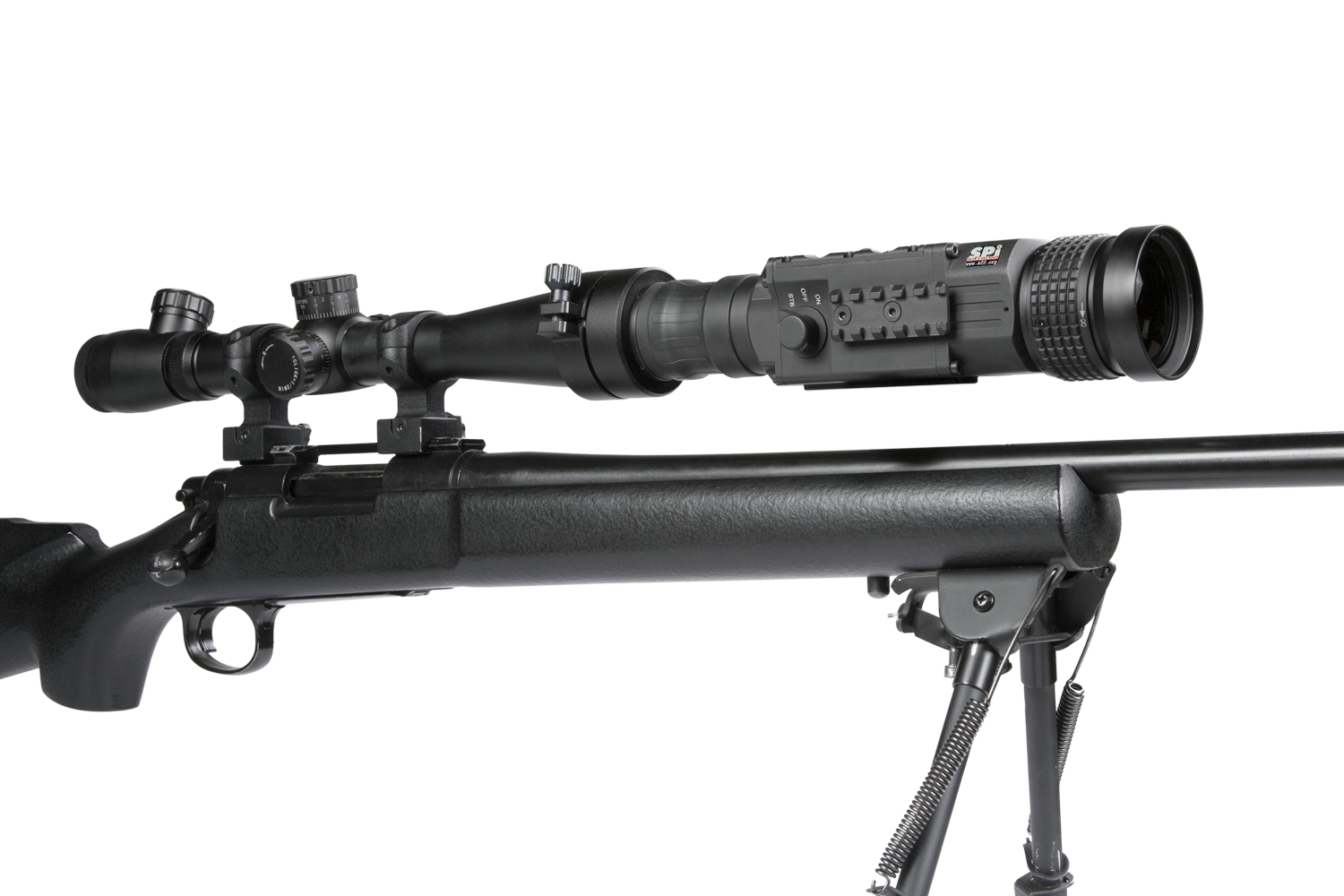

The SPI Dauber is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. The Dauber can be easily attached on up to 8x magnification scopes for medium range use. Powered with two CR123 batteries the unit provides up to 5 hours of continuous work. An optional external battery pack (5V) with high-capacity is capable of increasing the total operation time to up to 44 hours. The Dauber can be also connected to an optional video recorder for shooting real time video or external Wi-Fi module for conjunction with smartphones.
- Quick conversion of daytime optics into thermal imaging scope
- Mounts in front of any daytime scope, no re-zeroing is required
- FLIR Tau 2 17μm pitch thermal sensor
- Lightweight and robust design
- Easy to operate device
- Manually adjustable objective lens
- Real-time display
- Multiple color palettes
- Wireless remote control
- Waterproof
- External Wi-Fi module
- Integral MIL-STD-1913 rails for optional accessories
- Powered by two standard CR123A batteries
- External power supply via micro USB
SPECIFICATIONS
| Storage temperature range | -40°C to +70°C (-40°F to +158°F) |
| Exit Pupil Diameter | 40 mm |
| Remote control | Wireless (Activates/ Deactivates the scope in Standby Mode) |
| Imaging palettes | Changeable |
| Environment Rating | Waterproof |
| Detector type | FLIR Tau 2 17μm Uncooled Microbolometer |
| Refresh rate | 60 Hz |
| Resolution | 336 x 256 |
| Lens system | 50 mm; F/1.1 |
| Optical magnification | 1x |
| Field of view (H × X) | 7.8 ° × 5.9° (H x V) |
| Digital zoom | 1x, 2x, 4x |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 5 m to infinity |
| Eye relief | 60 mm |
| Display | 800x600pixels |
| Video output | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Battery Type | Two CR123 |
| Battery Life (Operating) | Up to 5 hr |
| External power supply | External battery pack via micro-USB port |
| Power supply | 3.6~7.2V |
| Operating Temperature Range | -25°C to +50°C (-4°F to +122°F) |
| Weight | 0.81 kg (1.8 lbs) |
| Overall Dimensions | 217 x 71 x 81 mm (8.5 x 2.7 x 3.1 in) |
