Detector type: 17μm Uncooled Microbolometer
Refresh rate: 60 HZ
Resolution: 640 x 512
FOV: 8.3° × 6.6°

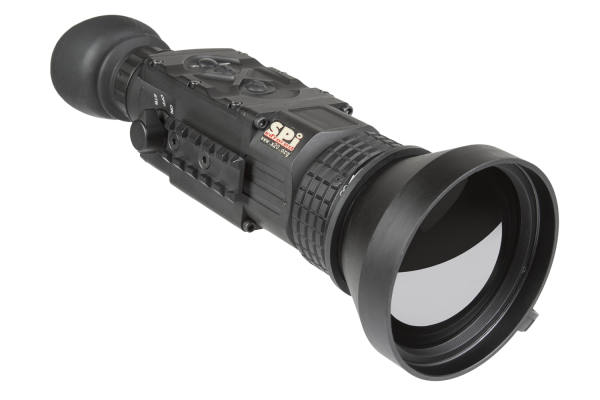

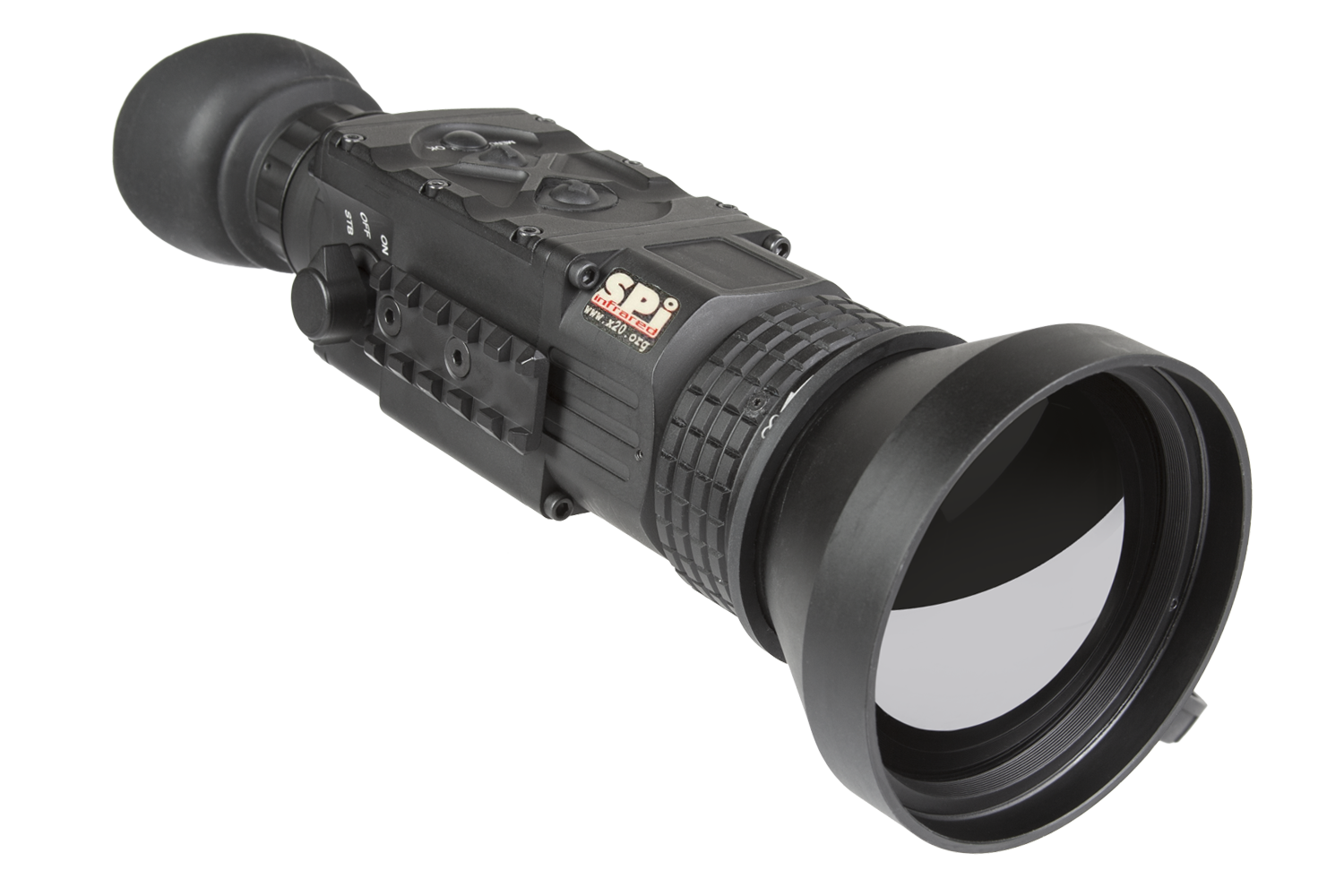

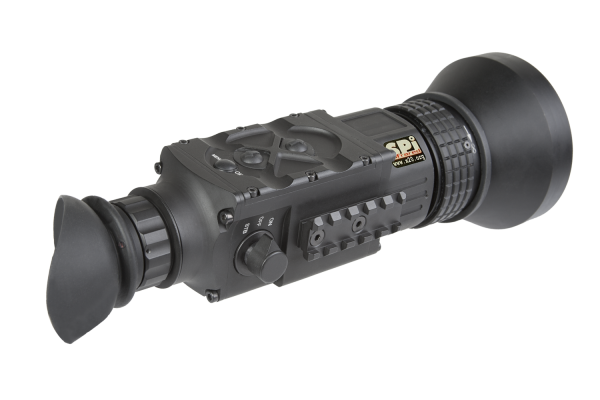

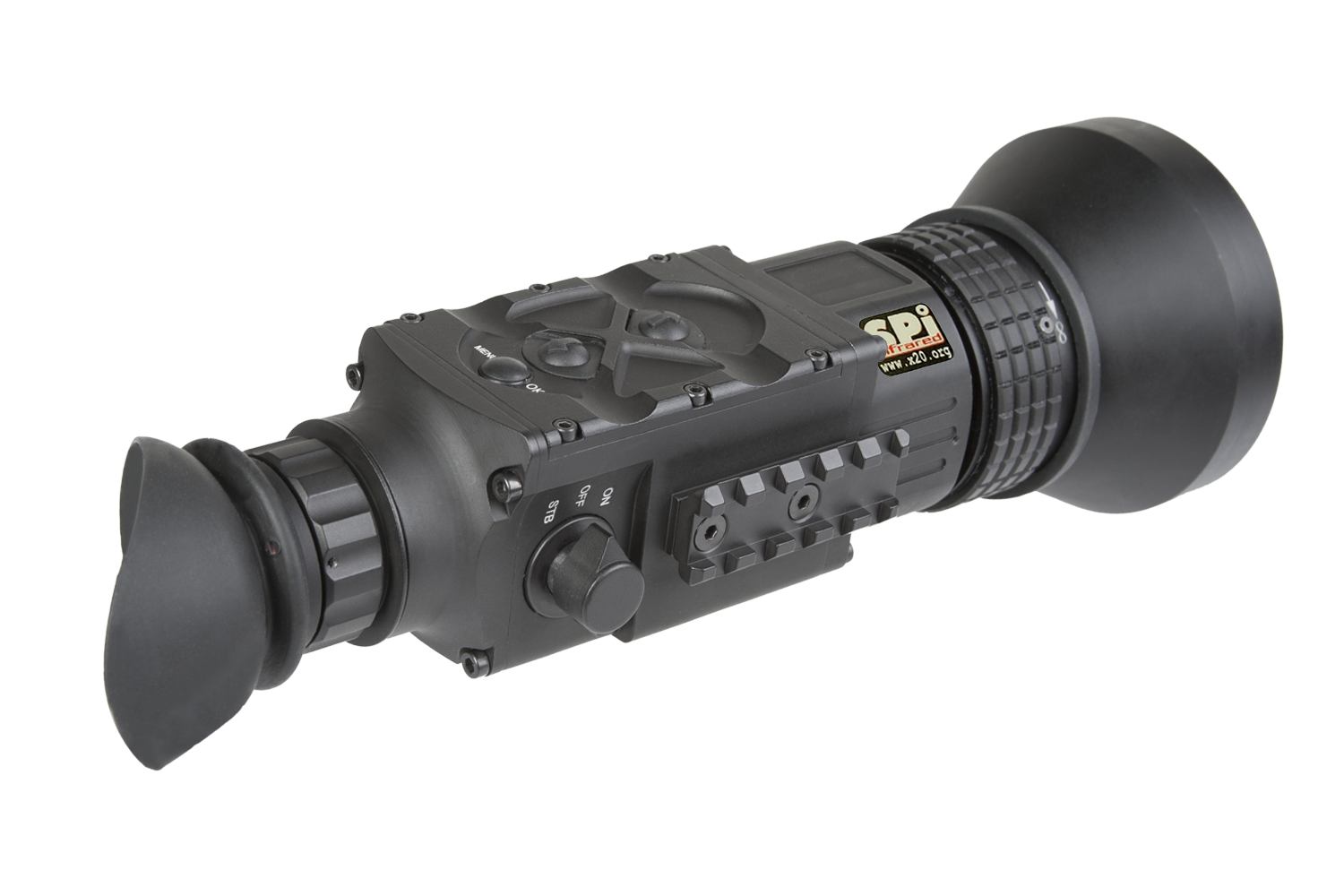

SPI Wasp T640-75-M
THERMAL MONOCULARS | PART #T640-75-M
CHARACTERISTICS
PACKAGE INCLUDES
- Two Lithium CR123A batteries
- Lens Tissue
- Operators Manual
- Packing Box
- Remote Control
- Soft Carrying Case
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES
The SPI WASP represents the line of the most technologically advanced long range thermal imaging monoculars currently existing on the market. Based on Advanced US made LWIR ultra sensitive microbolometer sensors and made of high-grade aircraft aluminum alloy the unit guarantees durability and outstanding performance even to the most sophisticated users. This uncooled, long-wave infrared, magnified long range thermal imaging camera by SPI is designed for fulfilling of both long range day and night missions irrespective of the environment and weather factors, while a wide variety of objective lenses (25 mm, 50 mm, and 75 mm) enables the operator to use the device as both a compact, pocket-sized thermal imaging flir monocular, or as a long-range observation tool. The WASP long range thermal imaging monocular can be easily connected to extended battery pack to increase operational time. Optional WiFi module for live video streaming and recording is also available.
- Long Range capabilities in low light and pitch dark environments
- Durable and lightweight design
- Easy and intuitive operation
- Manually adjustable eyepiece and objective lens
- Long range thermal monocular
- External WiFi module
- Advanced ultra sensitive thermal IR sensor
- Optional video recording
- A wide variety of color palettes
- Wireless remote control
- Waterproof
- Rugged long range thermal IR imaging monocular system
- Integral MIL-STD-1913 rails on unit for optional accessories
- Powered by two standard CR123A batteries
- External power supply via micro USB
- Zoom: 1x – 8x
- Robust rugged all weather construction

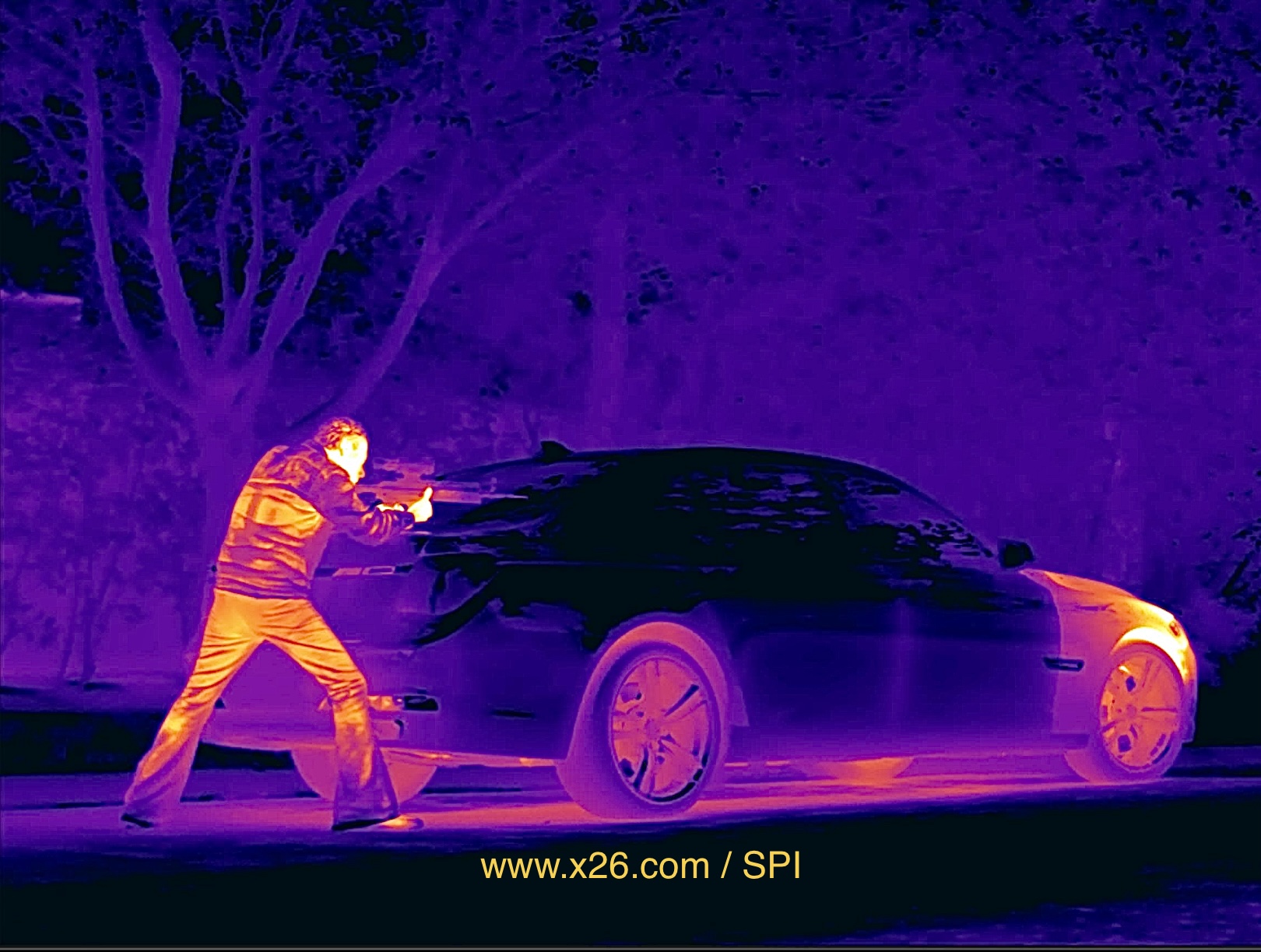

Long Range Human detection at pitch darkness
SPECIFICATIONS
| Detector type | Maintenance free Uncooled Microbolometer LWIR |
| Refresh rate | 60 HZ |
| Resolution | 640 x 512 |
| Start up | 3 seconds |
| Lens system | Coated, hardened anti reflective 75 mm; F/1.0 |
| Optical magnification | 4x |
| Field of view (H × X) | 8×6 |
| Zoom | 1x – 8x |
| Diopter adjustment range | -5 to +5 diopter |
| Focusing range | 10 m to infinity |
| Display | (800×600) OLED |
| Video output | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Temperature imaging palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack) |
| Battery Type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery Life (Operating) | Up to 4 hr (optional up to 12 hrs) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Weight | 0.83kg (1.8 lbs) |
| Overall Dimensions | 248 × 89 × 89 mm (9.8 × 3.5 × 3.5 in) |
| Package Includes | Wasp Long Range Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual |
