Image Intensifier Tube: Gen 2+ “Level 2”
Magnification: Unity 1x
Lens System: 80 mm; F/1.44
FOV: 12°

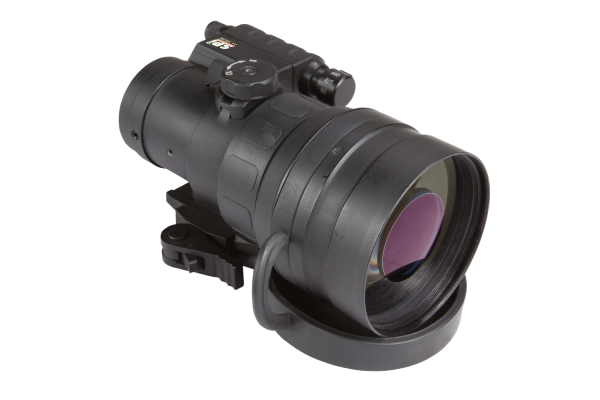

SPI CHOCTAW-22 NGEN2-C2
NIGHT VISION CLIP-ON SYSTEMS | PART #NGEN2-C2
CHARACTERISTICS
PACKAGE INCLUDES
- Packing Box
- SPI SPARK850
- Long Range Infrared Illuminator with Mount
- Dovetail to Weaver Transfer Piece
- Rechargeable Battery
- Charger
- Operators Manual
- One Lithium Battery CR123A
- Lens Tissue
- Soft Carrying Case
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES

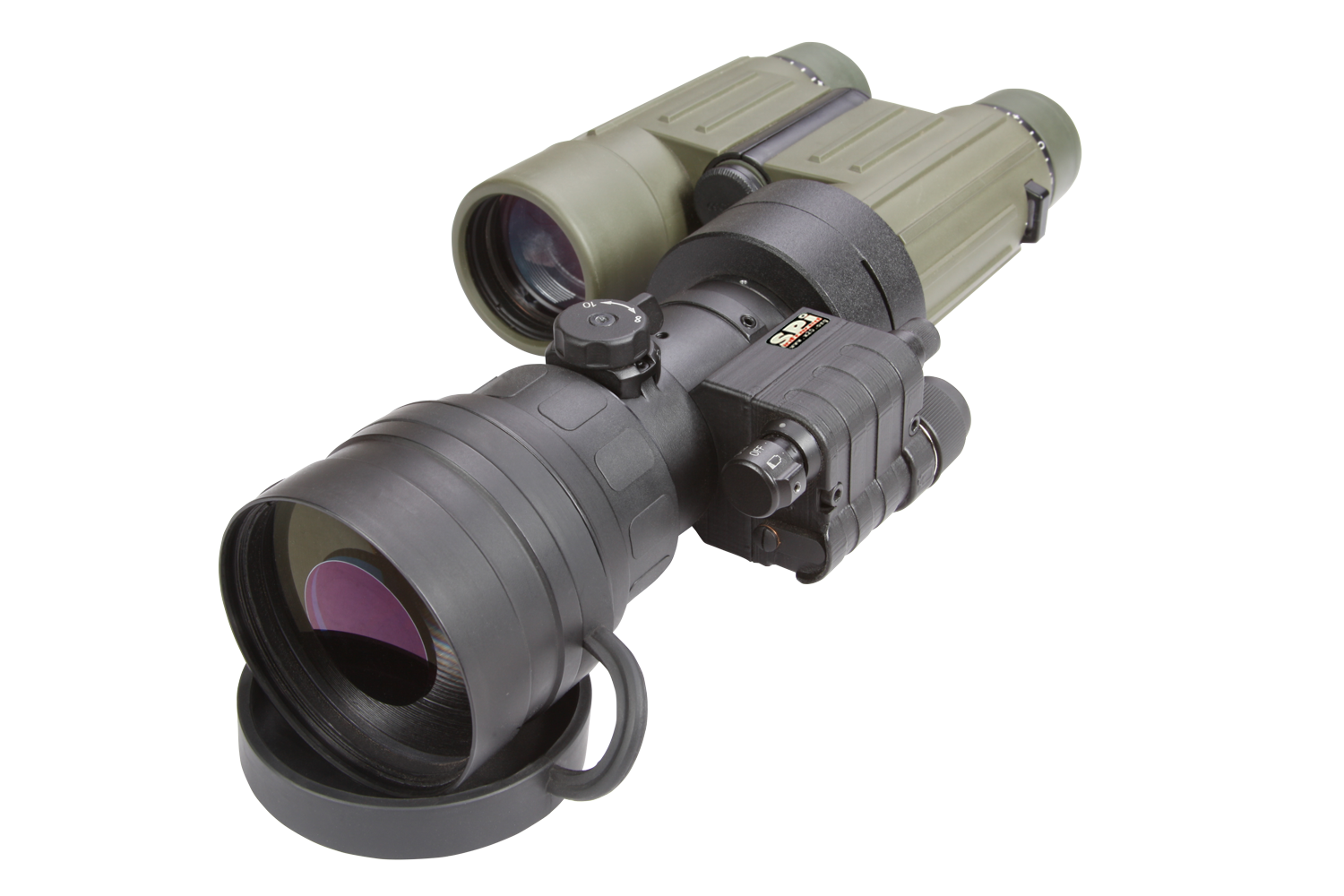

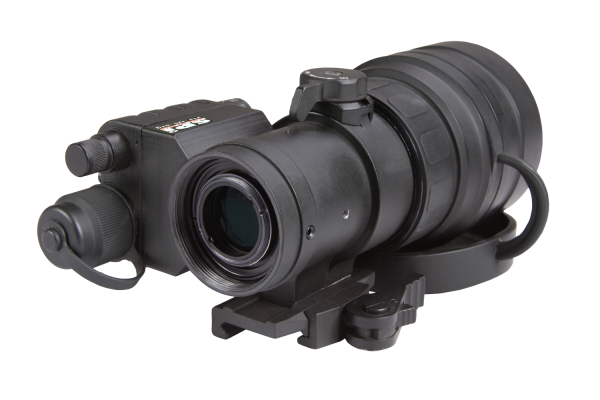

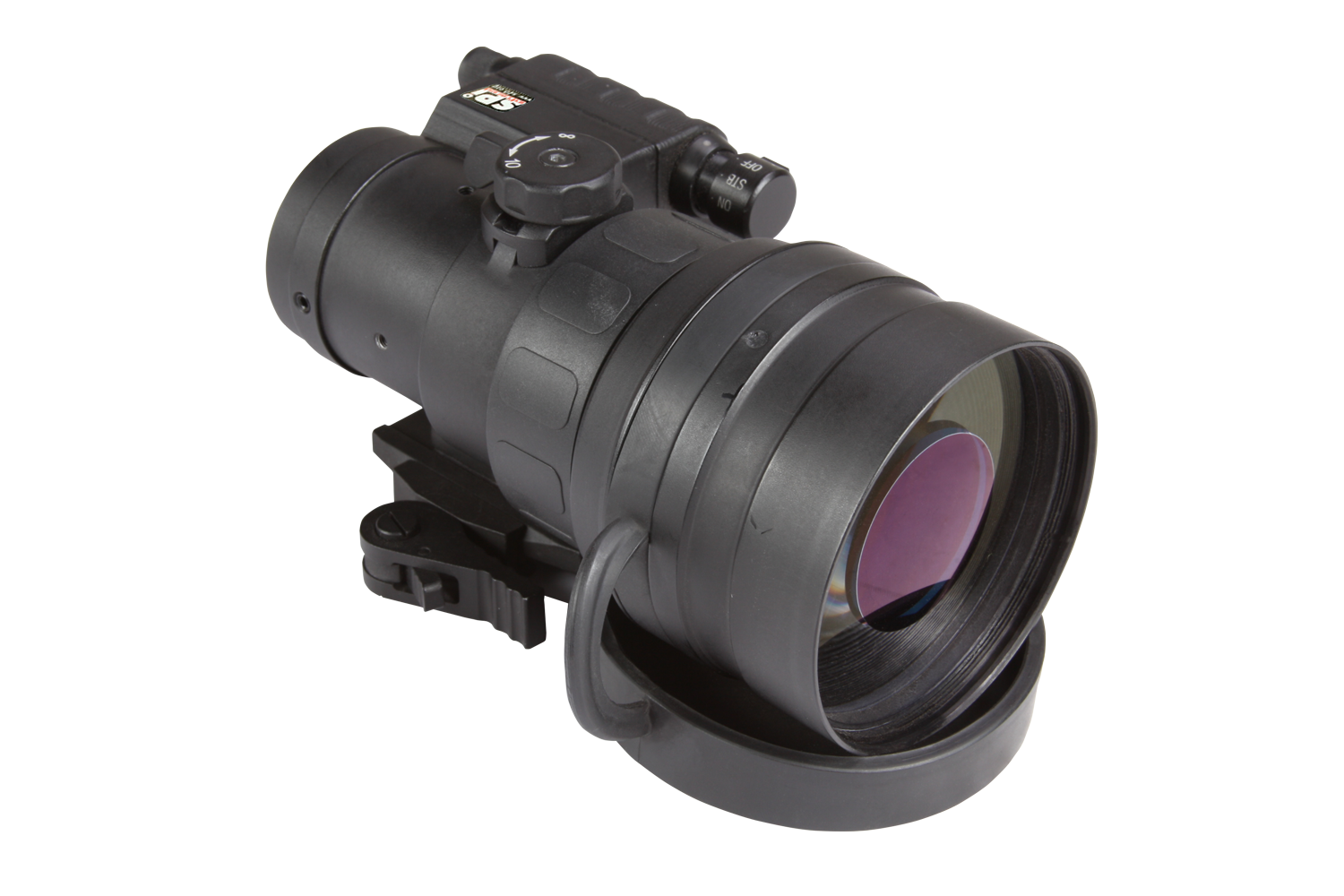

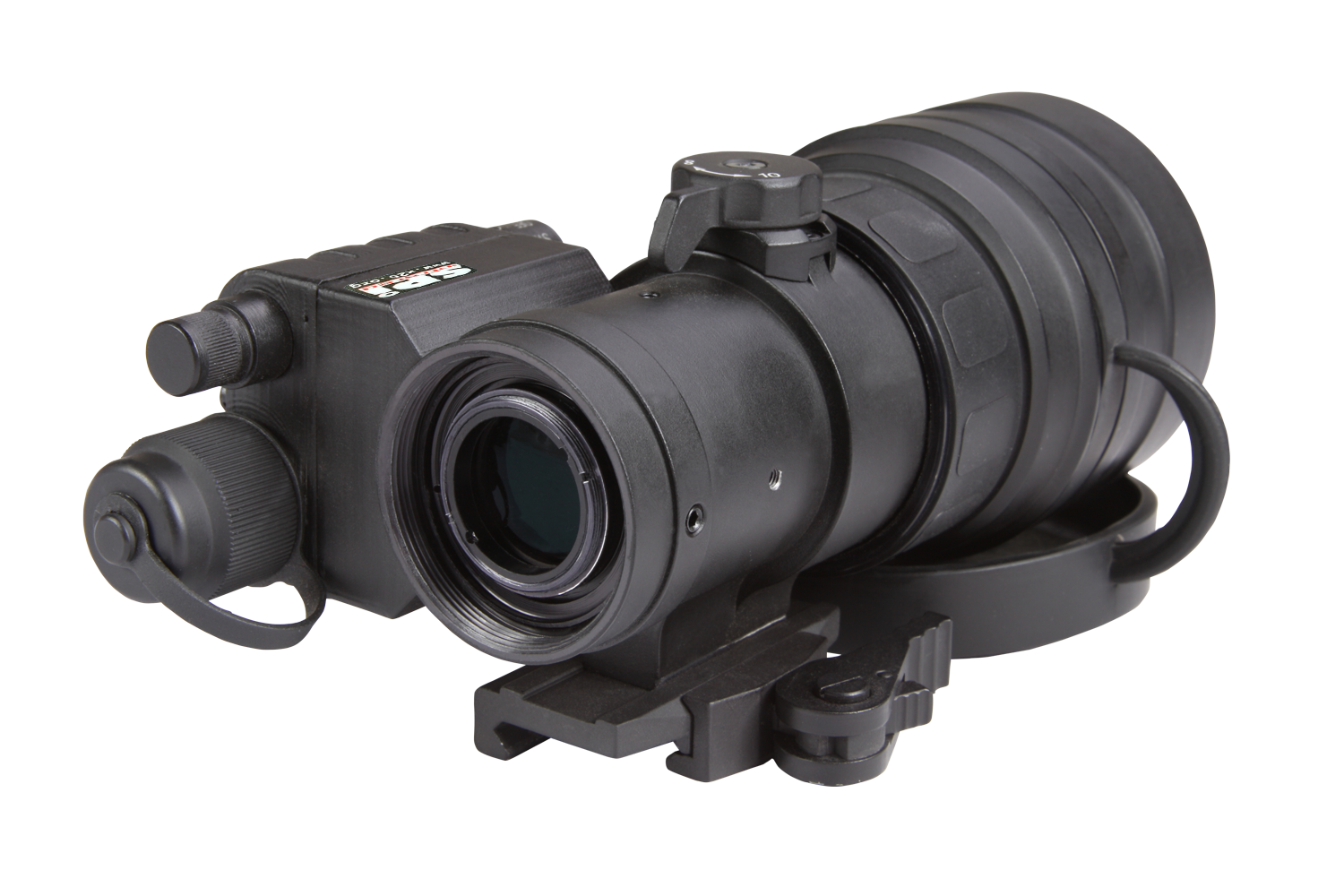

SPI Choctaw 22 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Choctaw 22 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Choctaw 22 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 7x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.
- Simple, quick conversion of daytime scopes to NVDs
- Manual gain control

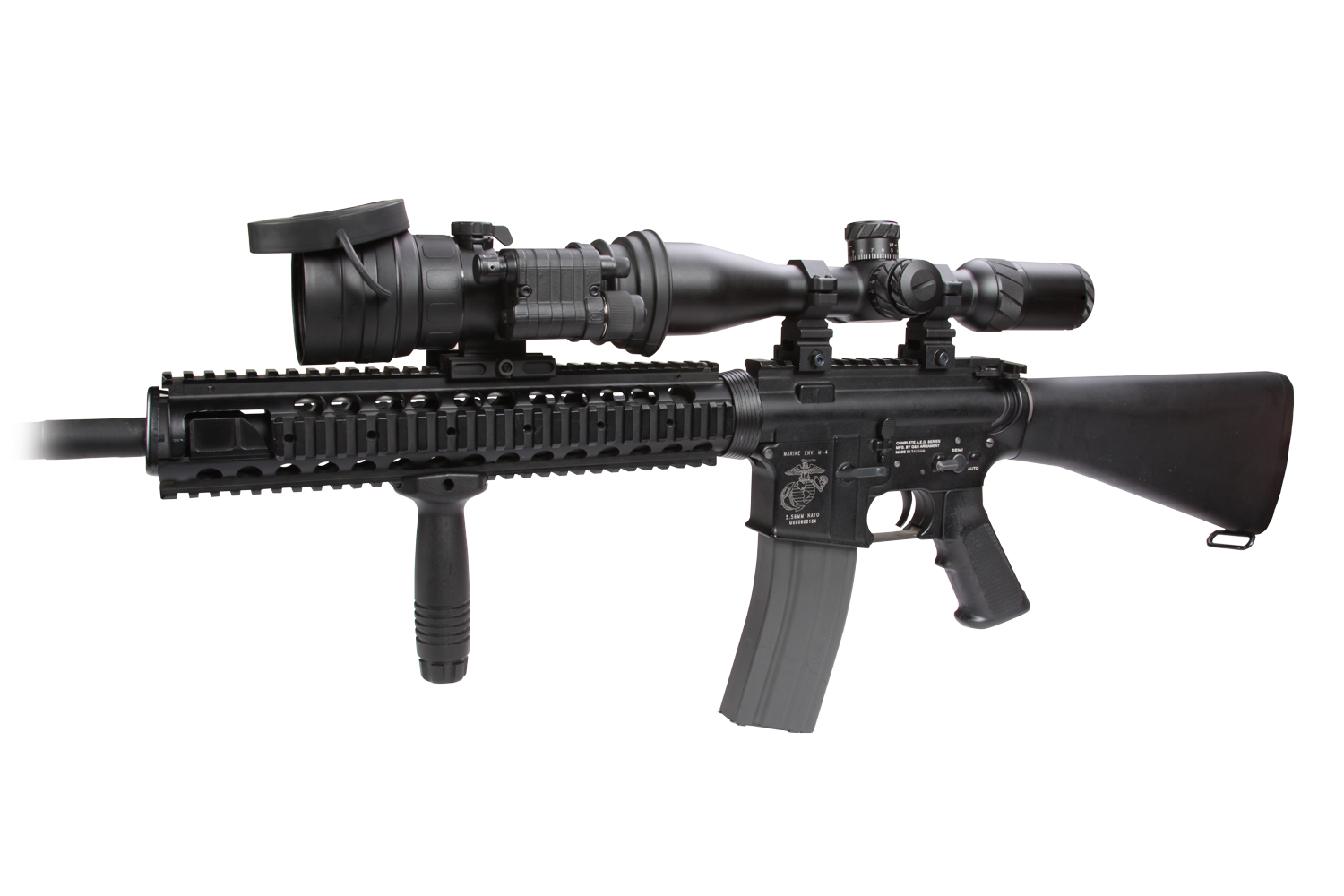

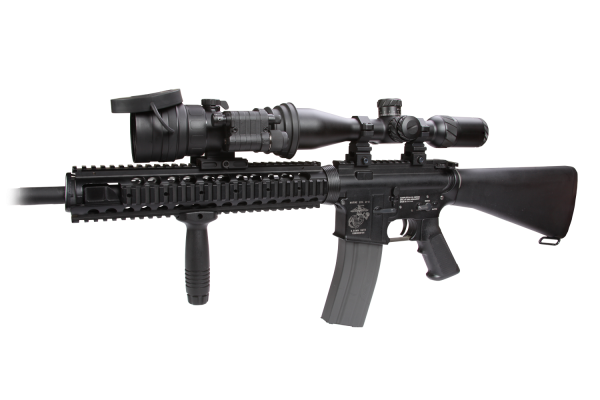

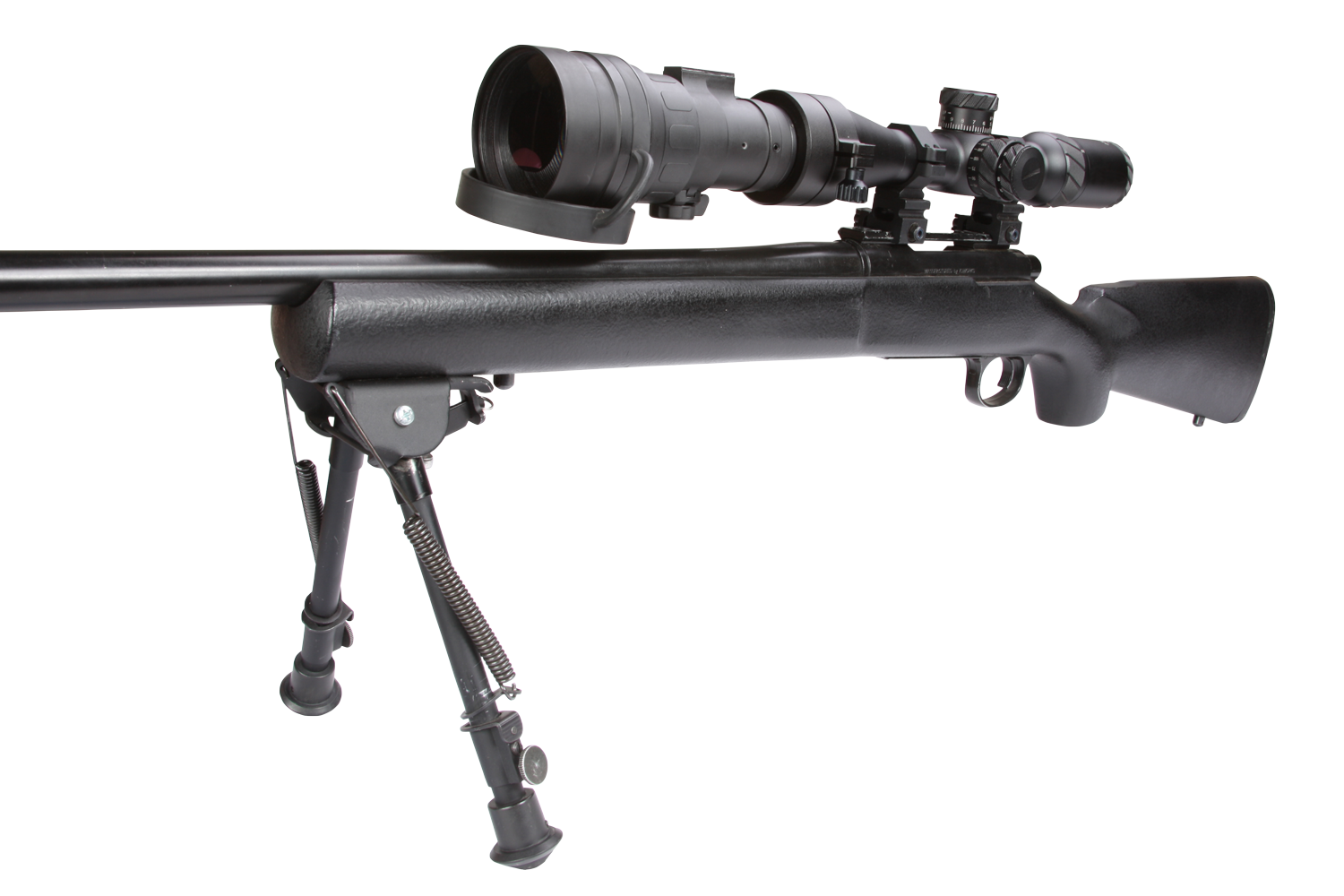

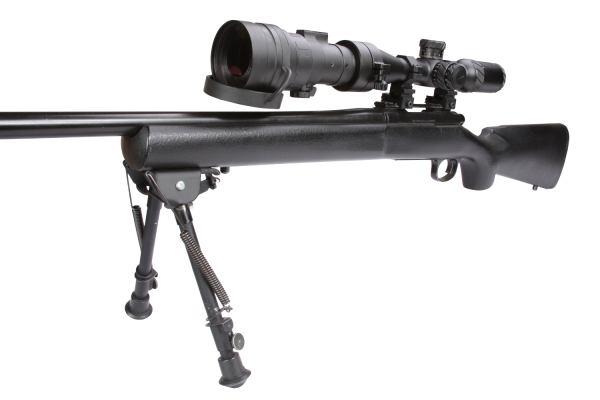

- Mounts in front of any daytime scope, no re-zeroing required
- Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
- Bright-light cut-off system
- Quick-release mount
SPECIFICATIONS
Image Intensifier Tube
Gen 2+ "Level 2"
Resolution
51-64 lp/mm
Magnification
Unity 1x
Lens System
80 mm; F/1.44
FOV
12°
Focus Range
10m to infinity
Controls
Direct
Led Indicators
Low battery; Excessive light conditions
Infrared Illuminator
Detachable; Long-range
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 60 hours at 20°C
Exit Pupil Diameter
22 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.75 kg (1.65 lbs)
Overall Dimensions
168×85×80 mm ( 6.6×3.3×3.1 in)
Package Includes
Night Vision Clip-On, Lens Cloth, Soft Carrying Case, SPARK850 Long-Range Infrared Illuminator
