Image Intensifier Tube: Gen 2+ “White Phosphor Level 3”
Magnification: 1x
Lens System: 27 mm; F/1.2
FOV: 40°
SPI WILDCAT-7 WGEN2-G3
NIGHT VISION GOGGLES | PART #WGEN2-G3
CHARACTERISTICS
PACKAGE INCLUDES
- One Lithium Battery CR123A
- Lens Tissue
- Battery adapter CR123A 3V / AA 1.5V
- SPI Cap Goggle Kit W
- Soft Carrying Case
- Packing Box
- Instruction Manual
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES
The SPI Wildcat-7 is a bi-ocular Night Vision goggle system assembled with premium-grade optics and simplified electronics for outstanding dependability. The Wildcat-7 provides bright and clear Night Vision images, even in the most trying conditions. Configured with an expanded choice of Gen 2+ and Gen 3 image tubes, wolf- 7 delivers high performance at any price point. The SPI Wildcat-7 includes a built-in short-range IR light source and offers a wide variety of accessories such as 3X and 5X magnification lenses for mid-to-long-range viewing, head or helmet mounts for hands-free operation, and additional, high-powered IR illuminators for long-range use. Waterproof, rugged, light, and compact, the Wildcat-7 is the perfect device for a variety of tough operations.
- Lightweight compact rugged goggle system

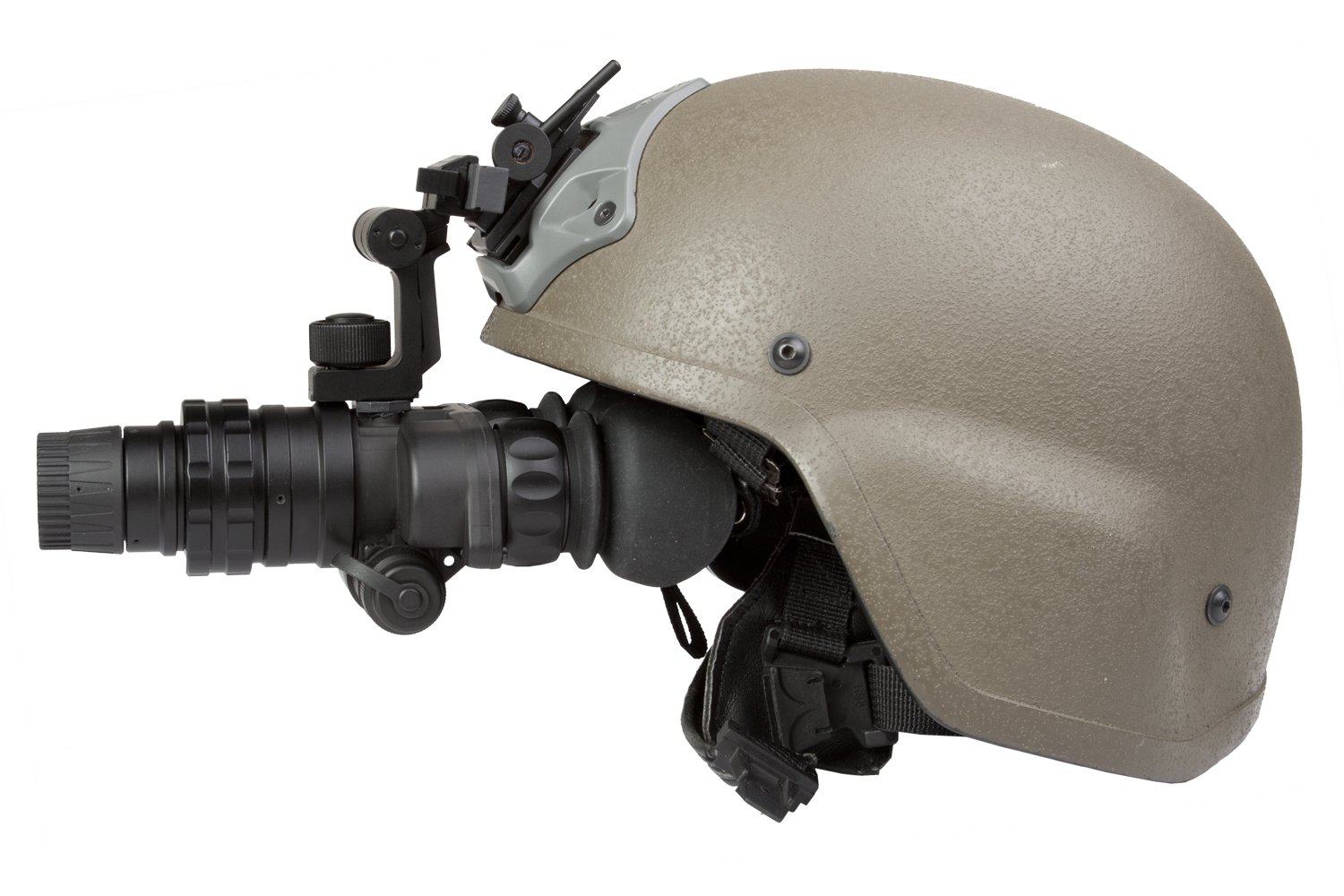

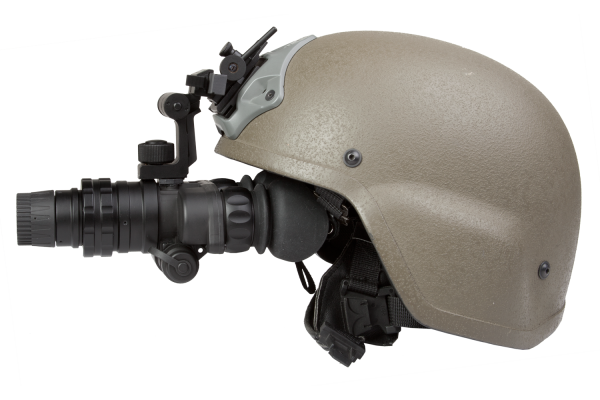

- Multi-purpose: Hand-held, head-mounted or helmet-mounted
- Comfortable flip-up headgear
- Multi-coated all-glass optics
- Wide angle infrared illuminator
- Auto brightness control
- Bright light cut-off Utilizes single CR123A lithium battery or AA Alkaline, adapter included
- Waterproof
SPECIFICATIONS
Image Intensifier Tube
Gen 2+ "White Phosphor Level 3"
Resolution
47-54 lp/mm
Magnification
1x
Lens System
24mm, F/1.2
FOV
40°
Focus Range
0.25 m to Infinity
Diopter Adjustment
-5 to +5 dpt
Led Indicators
Low battery; IR On; Excessive light conditions
Automatic Brightness Control
Yes
Infrared Illuminator
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 60 hours at 20°C
Waterproof
Yes
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
0.45 kg (0.9 lbs)
Overall Dimensions
188 × 122 × 70 mm (7.4 × 4.8 × 2.8 in)
Package Includes
Goggle Kit W, Soft Carrying Case, Lens Cloth, Battery Adapter,User Manual
Field of view cleanness by zone
