Image Intensifier Tube: Gen 2+ “Level 3”
Magnification: 1x (3x and 5x optional)
Lens System: 26 mm; F/1.2
FOV: 40°

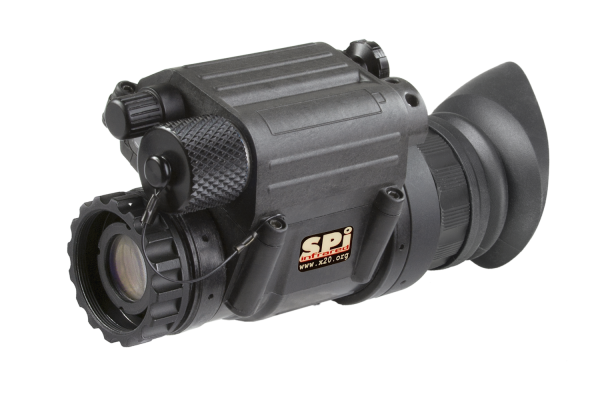

SPI PVS-14 NGEN2-M3
NIGHT VISION MONOCULARS | PART #NGEN2-M3
CHARACTERISTICS
PACKAGE INCLUDES
- Packing Box
- System Soft Carrying Case
- Helmet/ Head Mount Adapter

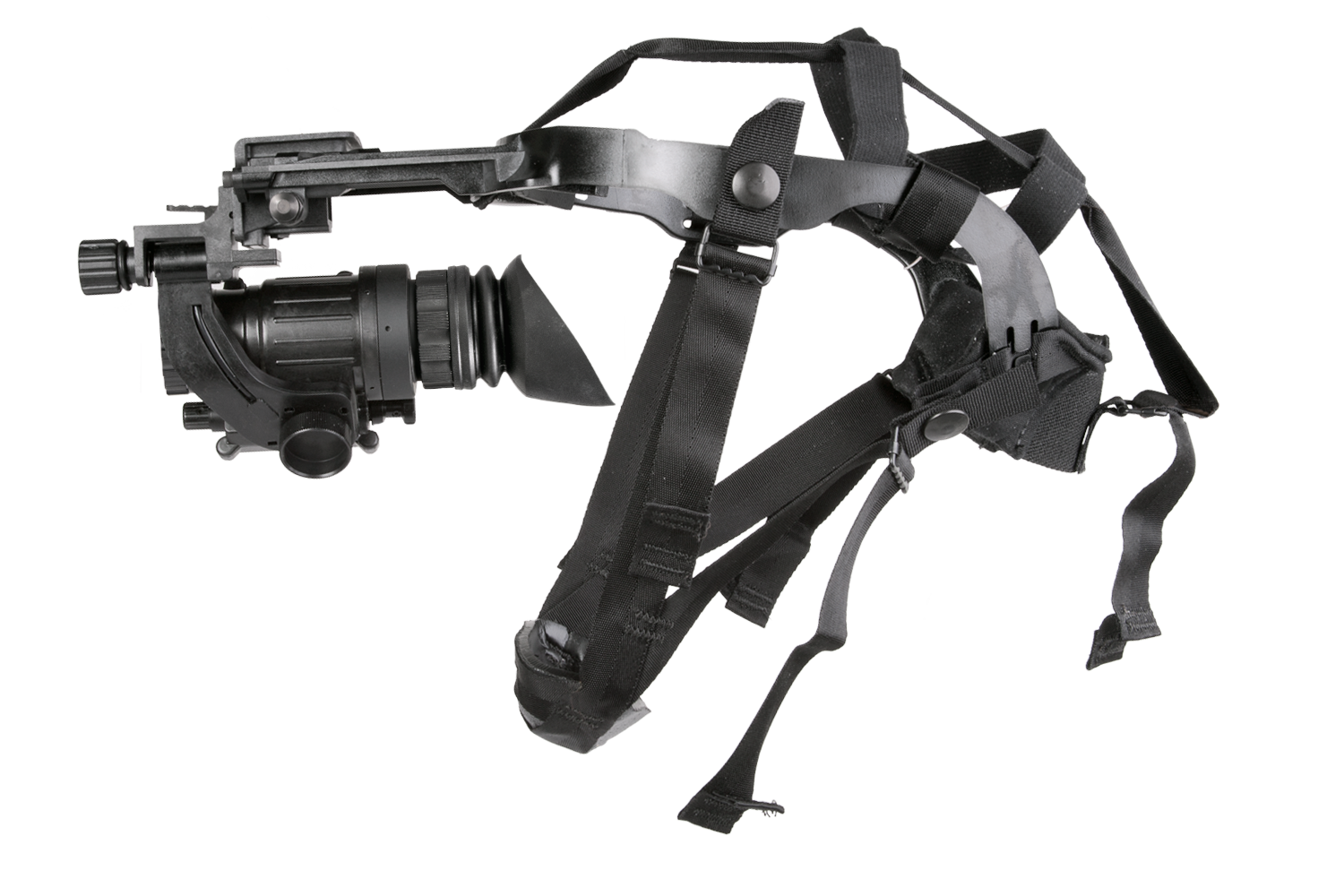

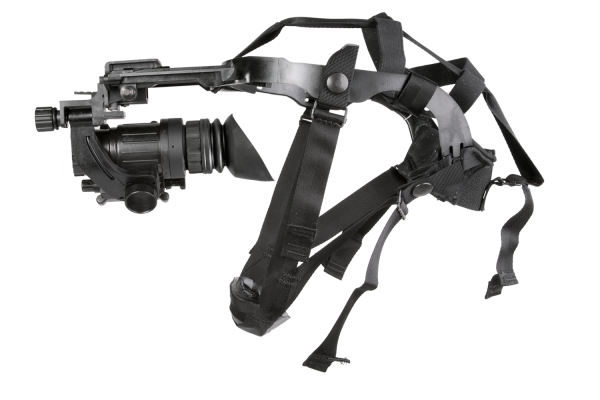

- Head Mount Assembly
- Neck Lanyard
- Operators Manual
- Batteries
- Demist Shields
- Sacrificial Window
- Lens Tissue
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES
The SPI PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS- 14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS- 14 monocular conforms to 810G Military standards, and is of the highest quality form and function. The PVS-14 monocular is a full-featured unit, weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The automatic brightness control ensures a consistent, steady image by automatically adjusting the visual in real time, based on the available light in the area. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. SPI PVS-14 includes an array of optional accessories to support virtually any operation.
- Compact, rugged design
- Waterproof
- Weapon mountable
- Head or helmet-mountable for hands-free usage
- Manual gain control
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
SPECIFICATIONS
Image Intensifier Tube
Gen 2+ "Level 3"
Resolution
47-54 lp/mm
Field of view cleanness by zone
Gen 2 IIT NL3 offers good quality at competitive pricing.
Magnification
1x (3x and 5x optional)
Lens System
26 mm; F/1.2
FOV
40°
Focus Range
0.25 m to infinity
Diopter Adjustment
-6 to +4 dpt
Led Indicators
Low battery; IR On; Excessive light conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One AA Alkaline
Battery Life (Operating)
Up to 50 hours at 20°C
Operating Temperature Range
-51° C to +49° C (-60° F to 120° F)
Storage Temperature Range
-51° C to +85° C (-60° F to 185° F)
Weight
0.32 kg (12.4 oz)
Overall Dimensions
114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
Package Includes
Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
