Image Intensifier Tube: Gen 2+ “Level 3”
Magnification: 1x
Lens System: 27 mm; F/1.2
FOV: 40°
SPI Wildcat-14 NGEN2-M3
NIGHT VISION MONOCULARS | PART #NGEN2-M3
CHARACTERISTICS
PACKAGE INCLUDES
- Lens Tissue
- One Lithium Battery CR123A
- Packing Box
- Soft Carrying Case
- Operators Manual
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES

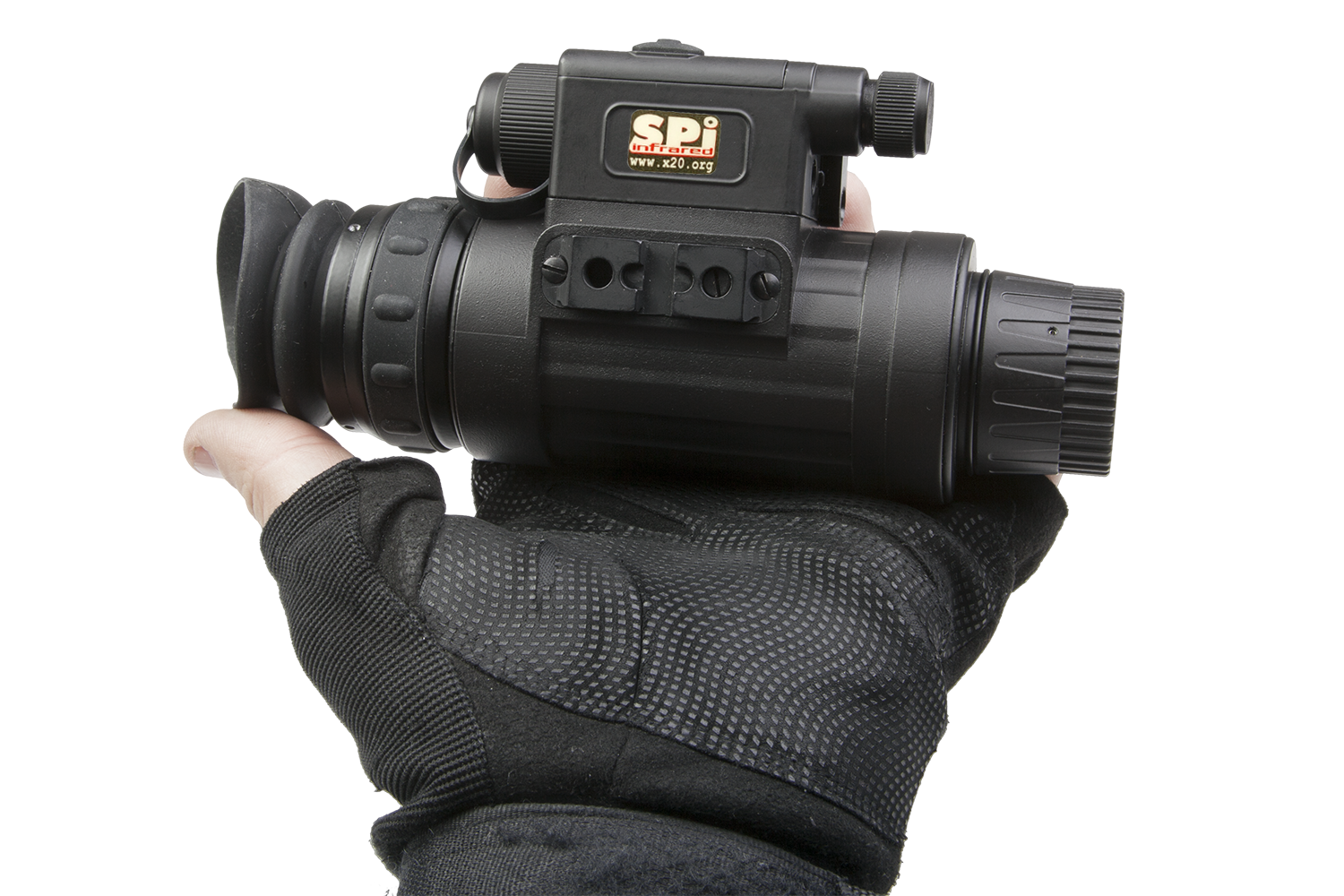

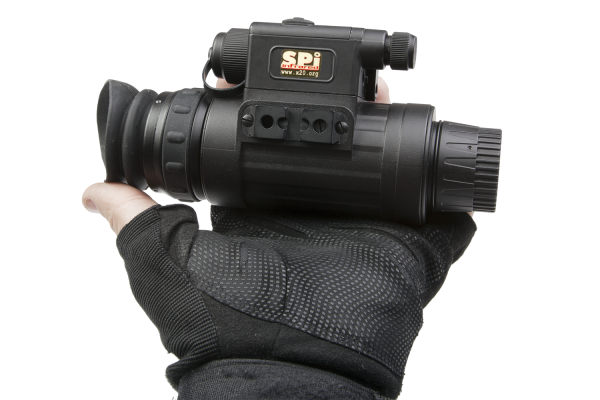

SPI Wildcat-14 is a high-tech, durable and versatile Night Vision monocular that delivers great performance at a reasonable price. Packed with high-tech features, the Wildcat-14 NVM is equally suited for law enforcement and security professionals, as it is for hunting and recreation. The Wildcat-14 NVM can be hand-held or mounted on a helmet or headgear. A specialized mount enables use with a rifle and the ability to mount in front of a camcorder or camera makes it ideal for night photography. With a variety of compatible lenses, long-range nighttime viewing is available in seconds. The Wildcat-14 NVM features bright light shut-off circuitry and a built-in spot/flood IR illuminator. The Wildcat-14 can be equipped with high-performance Gen 2 image intensifier tubes in green or white phosphor.
- Compact, rugged design
- Weapon mountable

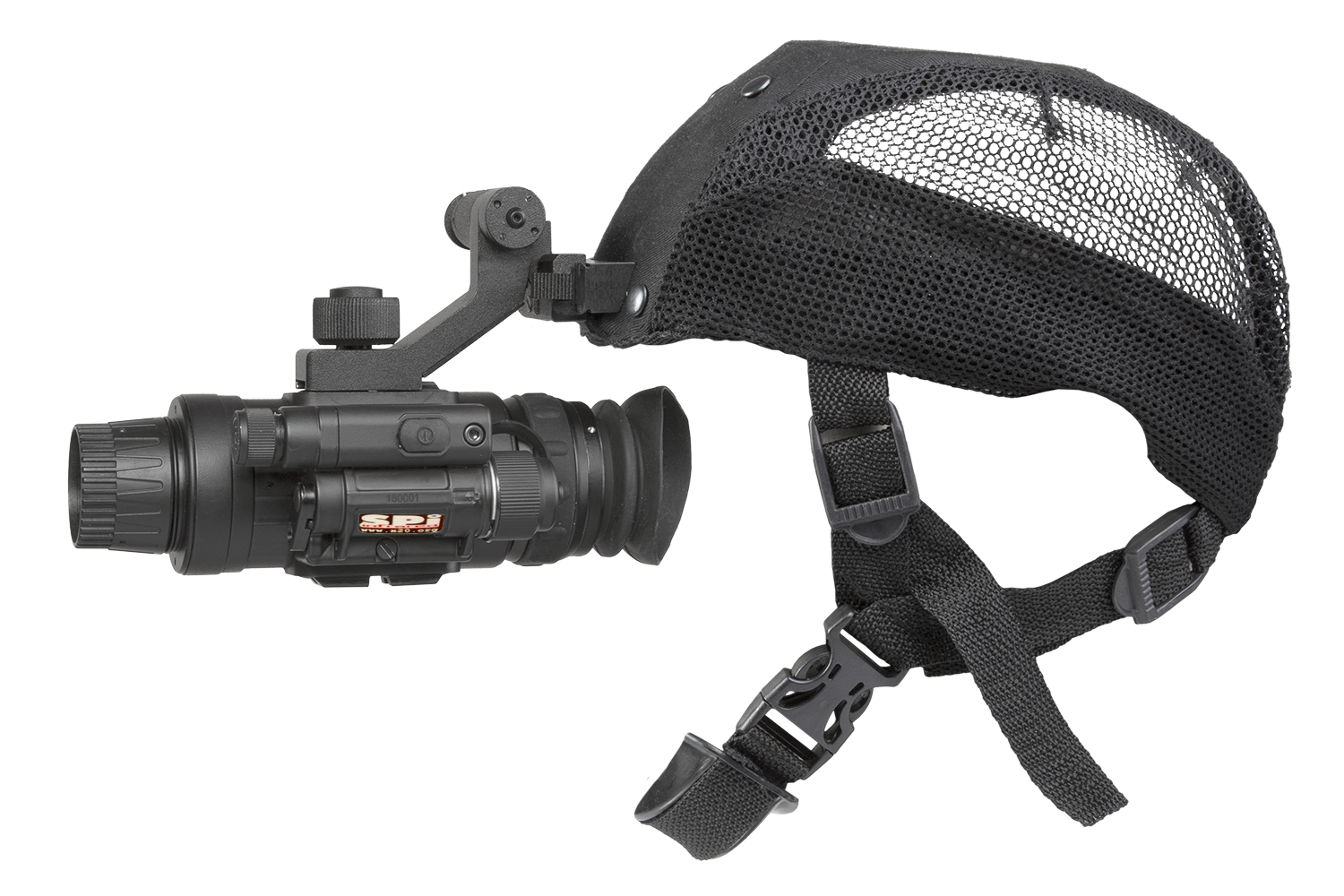

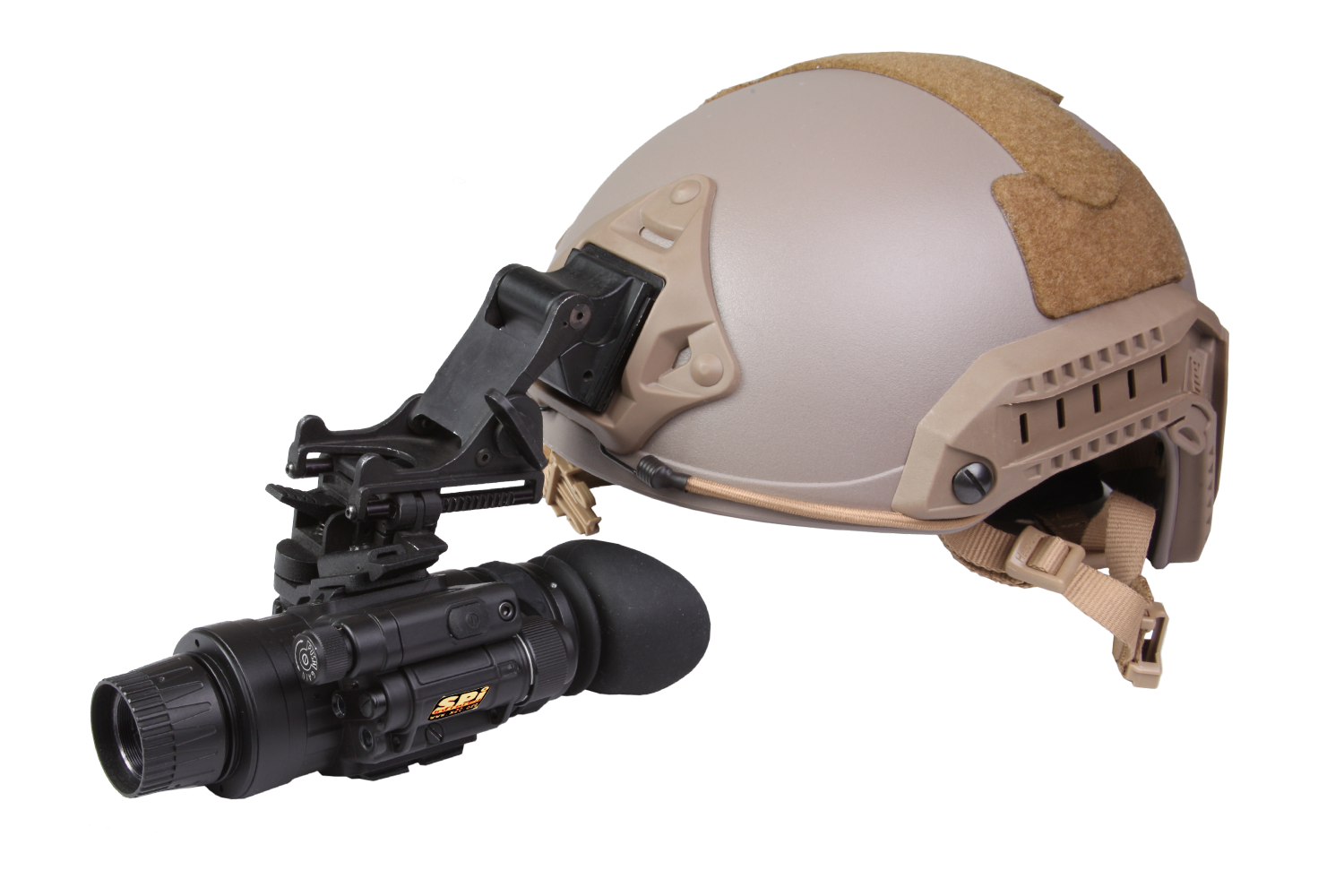

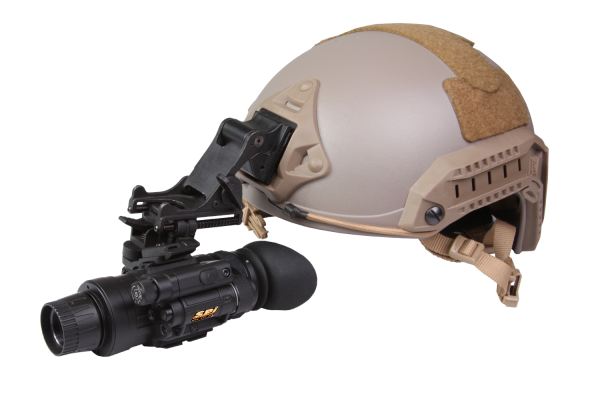

- Head or helmet mountable for hands-free usage
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Utilizes single CR123A lithium battery or AA Alkaline, adapter included
- Adaptable for use with cameras
- Built-in Infrared illuminator and flood lens
SPECIFICATIONS
Image Intensifier Tube
Gen 2+ "Level 3"
Resolution
47-54 lp/mm
Field of view cleanness by zone
Gen 2 IIT NL3 offers good quality at competitive pricing.
Magnification
1x (3x and 5x optional)
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
21.5 mm
Diopter Adjustment
-5 to +5 dpt
Led Indicators
Low battery; IR On
Infrared Illuminator
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 40 hours at 20°C
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.46 kg (1.0 lbs)
Overall Dimensions
157 × 60 × 75 mm (6.1 × 2.3 × 2.9 in)
Package Includes
Night Vision Monocular, Lens Cloth, Soft Carrying Case
