Image Intensifier Tube: Gen 2+ “Level 3”
Magnification: 4x
Lens System: 108 mm; F/ 1.54
FOV: 9°
SPI BADGER 4X-NGEN2-S3
NIGHT VISION WEAPON SIGHTS | PART #4X-NGEN2-S3
CHARACTERISTICS
PACKAGE INCLUDES
- SPI SPARK850 Long Range Infrared Illuminator with Mount
- Dovetail to Weaver Transfer Piece
- Rechargeable Battery and Charger
- Operators Manual
- One Lithium Battery CR123A
- Lens Tissue
- Soft Carrying Case
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES

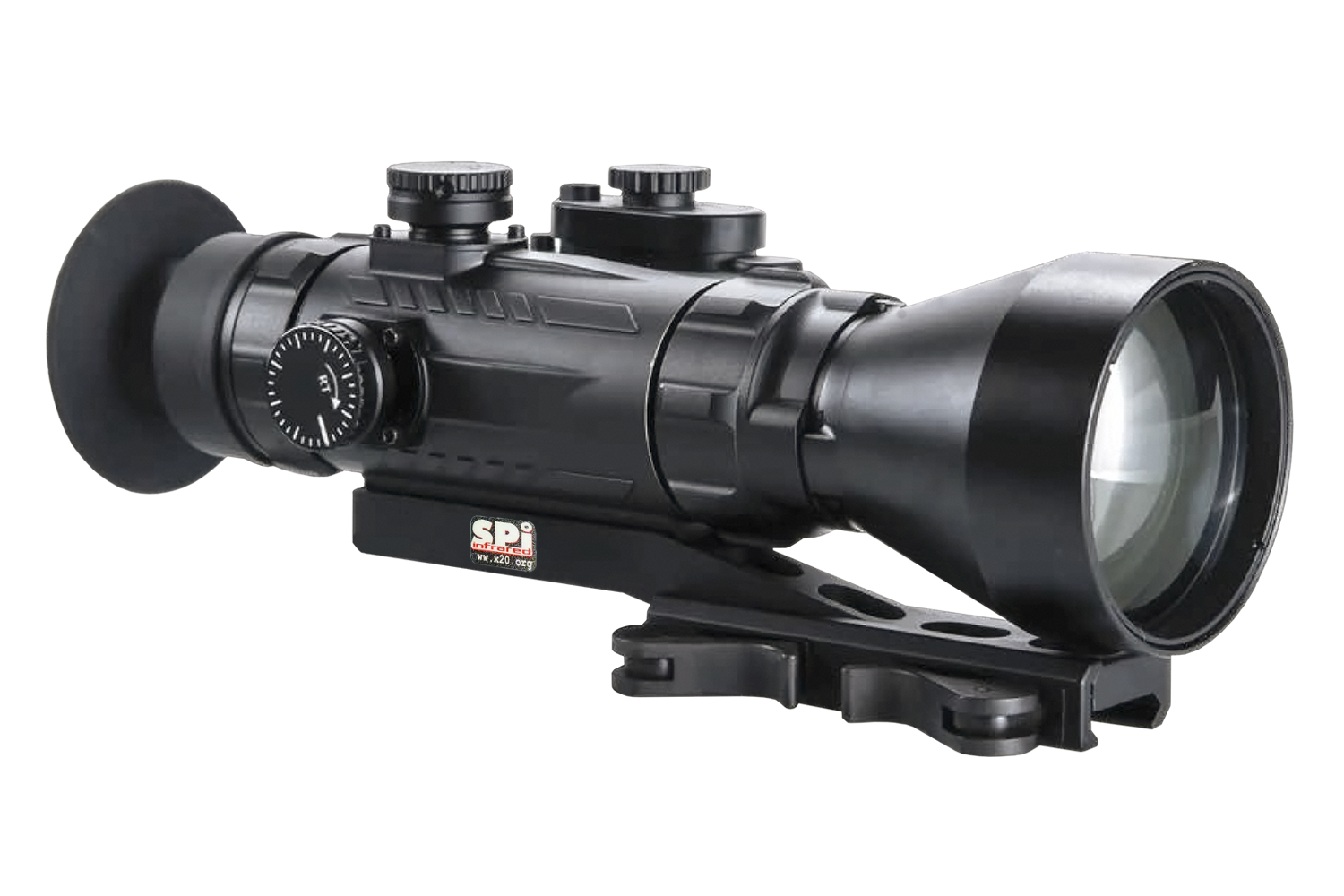

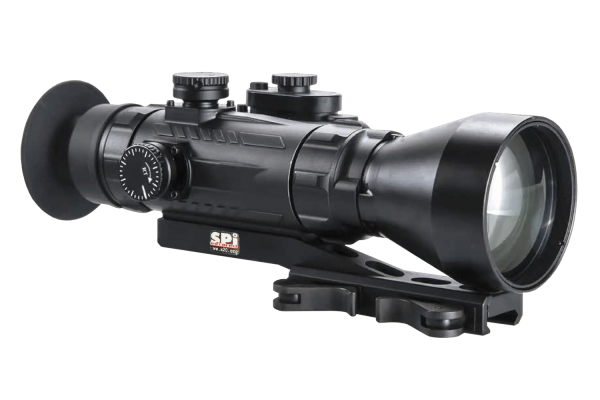

The Badger 4 is a rugged and advanced night vision riflescope that offers excellent performance at a competitive price. Boasting a high-quality Gen 2+ image intensifier tube, adjustable illuminated reticle, easy-to-use internal windage and elevation adjustments, and simple controls, the Wolverine 4 allows you to see beyond the expected in nighttime conditions. This riflescope is manufactured using a specially-coated aircraft alloy. It is equip with a double-lever quick-release mount that allows for highly-accurate rail positioning to maximize user comfort. The manual precision top wheel focus provides improved accuracy and ergonomics. Water-resistant, lightweight, and robust, the Badger 4 is the ideal night vision riflescope for dedicated hunters and tactical marksmen.
- 4X magnification
- Shock protected, all-glass IR transmission multicoated optics
- Made from aircraft aluminum alloy
- Illuminated reticle with brightness adjustment
- Quick-release mount
- Mounts to standard weaver rails
- Water and fog-resistant
SPECIFICATIONS
Image Intensifier Tube
Gen 2+ "Level 3"
Resolution
47-54 lp/mm
Field of view cleanness by zone
Gen 2+ NL3 offers good quality at competitive pricing.
Magnification
4x
Lens System
108 mm; F/ 1.54
FOV
9°
Focus Range
10m to infinity
Diopter Adjustment
-5 to +5 dpt
Eye Relief
45 mm
Reticle Type / Color
Mil-Dot / Illuminated Red center
Boresight Adjustment Increment
1/4 MOA
Boresight Adjustment Range
± 60 MOA
Infrared Illuminator
Detachable, long-range
Battery Type
Single CR123A 3V Lithium battery
Battery Life (Operating)
Up to 50 hours at 20°C
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Environment Rating
Water and fog-resistant
Weight
1.2 kg (2.6 lbs)
Overall Dimensions
308 x 94 x 97 mm (12.1 x 3.7 x 3.8 in)
Package Includes
Night Vision Weapon Sight, Lens Cloth, Soft Carrying Case, SPARK850 Long Range IR Illuminator, User Manual
