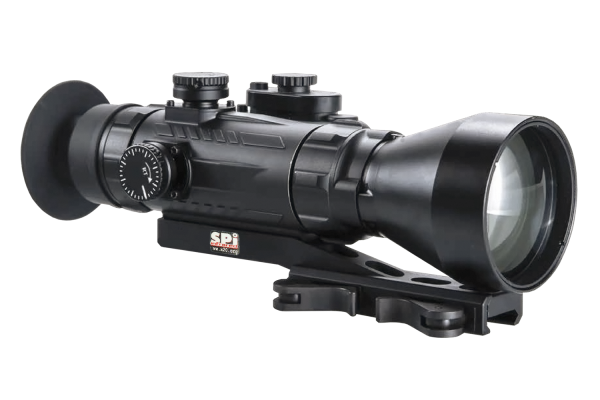

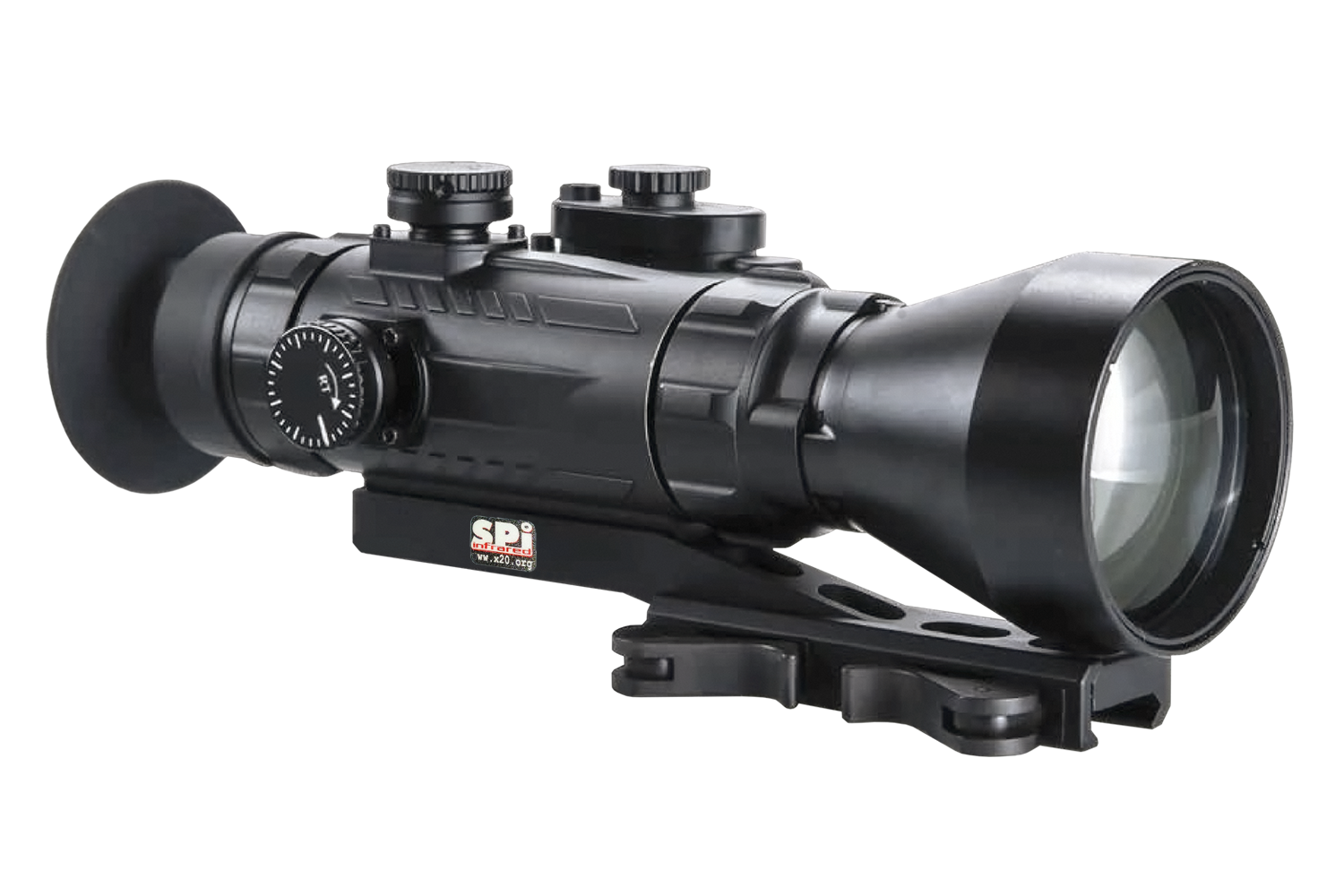

SPI BADGER 4X-NGEN3-S1

NIGHT VISION WEAPON SIGHTS | PART #15WP6623154011

CHARACTERISTICS

Image Intensifier Tube: Gen 3 Auto-Gated “White Phosphor Level 1”
Magnification: 6x
FOV: 5.7°

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

rifle scope range distance military grade hunting

DESCRIPTION AND FEATURES

The Badger Pro is our newest series of military grade level Night Vision sight. The Badger Pro utilizes a high strength aluminum design to service the rugged day-to-day requirements and ever-changing environments. Except for the optical elements, all external surfaces utilize a non-reflective matte black finish. The external objective lens and eyepiece lens elements are protected with an ultra-durable (scratch-resistant) coating. Controls and adjustments are easy to operate and include reticle brightness, eyepiece focus, range (distance) focus, plus windage and elevation adjustments.

  • 4x or 6x magnification
  • Easy to operate
  • Adjustable projected reticle
  • Powered by 2 AA batteries
  • Waterproof
  • 40 hours continuous operation

SPECIFICATIONS

Image Intensifier Tube

Gen 3 Auto-Gated "White Phosphor Level 1"

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.

Magnification

6x

Reticle color

Detachable, long-range

FOV

5.7°

Objective Lens Diameter

100 mm

Focus Range

50m to infinity

Diopter Adjustment

-6 to +2 diopters

Eye Relief

30 mm

Infrared Illuminator

2 AA Batteries

Battery Type

2 AA Batteries

Battery Life (Operating)

40 hr

Weight

1.47 kg (3.25 lb)

Overall Dimensions

285 × 108 × 91 mm (11.2 × 4.3 × 3.6 in)
