Image Intensifier Tube: Gen 2+ “Level 1”
Magnification: 6x
FOV: 5.7°

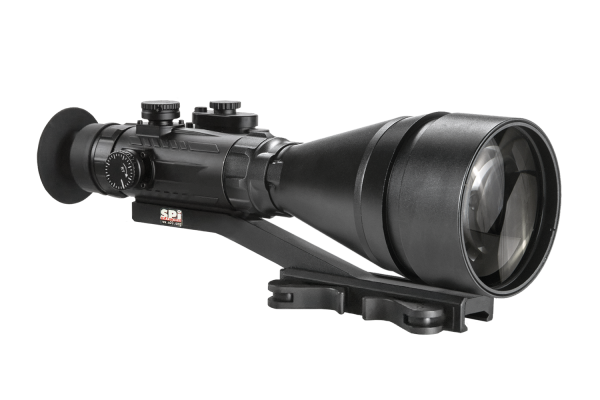

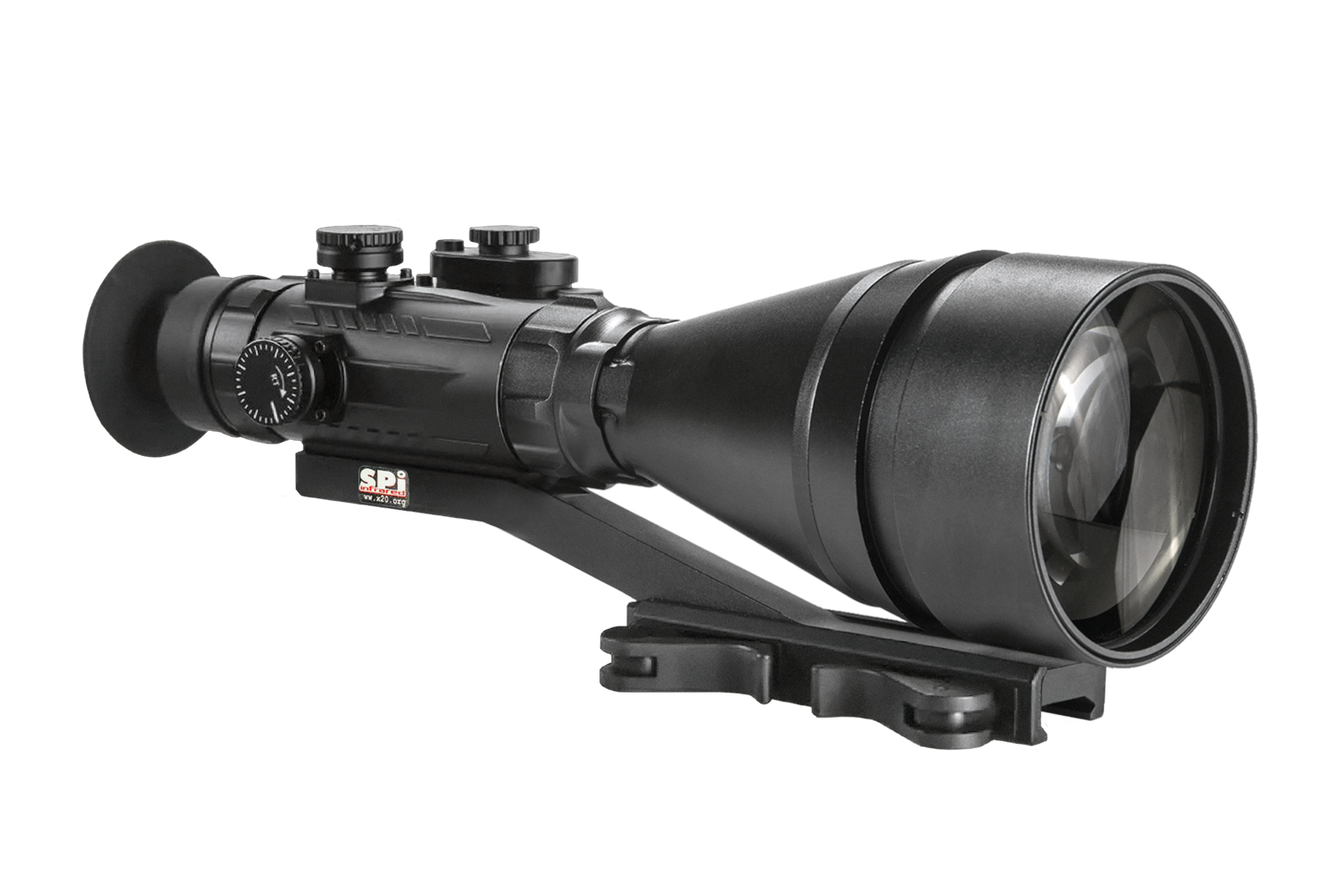

SPI BADGER 6X-NGEN2-S1
NIGHT VISION WEAPON SIGHTS | PART #6X-NGEN2-S1
DESCRIPTION AND FEATURES
The Badger Pro is our newest series of military grade level Night Vision sight. The Badger Pro utilizes a high strength aluminum design to service the rugged day-to-day requirements and ever-changing environments. Except for the optical elements, all external surfaces utilize a non-reflective matte black finish. The external objective lens and eyepiece lens elements are protected with an ultra-durable (scratch-resistant) coating. Controls and adjustments are easy to operate and include reticle brightness, eyepiece focus, range (distance) focus, plus windage and elevation adjustments.
- 4x or 6x magnification
- Easy to operate
- Adjustable projected reticle
- Powered by 2 AA batteries
- Waterproof
- 40 hours continuous operation
SPECIFICATIONS
Image Intensifier Tube
Gen 2+ "Level 1"
Resolution
55-72 lp/mm
Field of view cleanness by zone
Gen 2 IIT NL1 is the highest resolution and the cleanest offered by SPI. There are practically no visible spots in Zone 1.
Magnification
6x
Reticle color
Detachable, long-range
FOV
5.7°
Objective Lens Diameter
100 mm
Focus Range
50m to infinity
Diopter Adjustment
-6 to +2 diopters
Eye Relief
30 mm
Infrared Illuminator
2 AA Batteries
Battery Type
2 AA Batteries
Battery Life (Operating)
40 hr
Weight
1.47 kg (3.25 lb)
Overall Dimensions
285 × 108 × 91 mm (11.2 × 4.3 × 3.6 in)
